Please send RFQ , we will respond immediately.
| Part Number | MAX4624EZT+T | MAX4625EZT+T | MAX4624EUT+T |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 1 | 1 | 1 |
| On-State Resistance (Max) | 1Ohm | 1Ohm | 1Ohm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm | 60mOhm | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | 1.8V ~ 5.5V | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns | 50ns, 50ns | 50ns, 50ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 65pC | 65pC | 65pC |
| Channel Capacitance (CS(off), CD(off)) | 32pF | 32pF | 32pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 2nA | 2nA |
| Crosstalk | -57dB @ 1MHz | -57dB @ 1MHz | -57dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

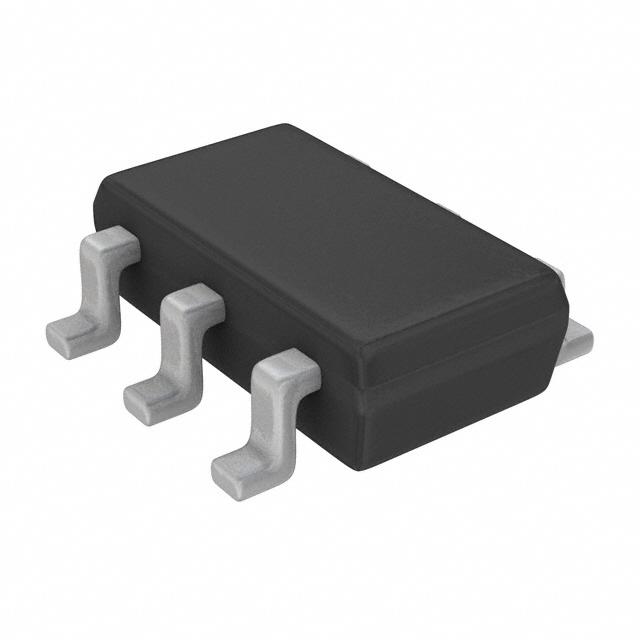

| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 |
| Supplier Device Package | TSOT-23-6 | TSOT-23-6 | SOT-6 |
