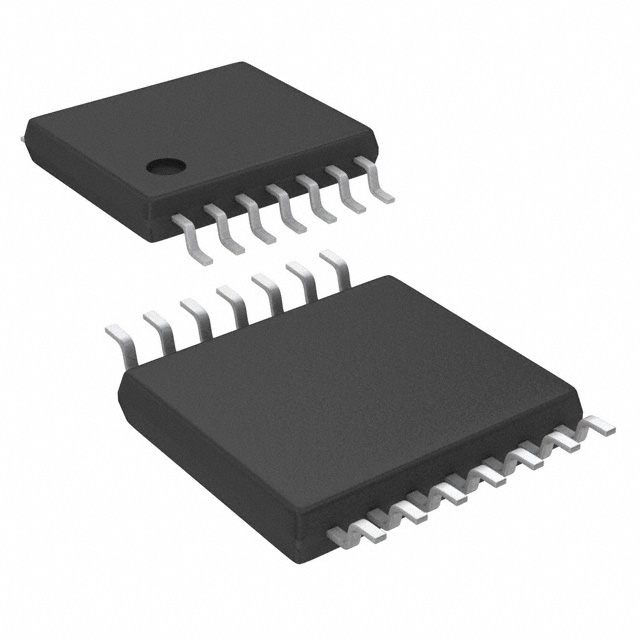

| Part Number | MAX4612CUD+ | MAX4614CUD+ | MAX4615CUD+ | MAX4616CUD+ | MAX4612EUD+ | MAX4610CUD+ | MAX4612CPD+ | MAX4612CSD+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete | Active |
| Switch Circuit | SPST - NO/NC | SPST - NO | SPST - NC | SPST - NO/NC | SPST - NO/NC | SPST - NO | SPST - NO/NC | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 100Ohm | 10Ohm | 10Ohm | 10Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm | 200mOhm | 200mOhm | 200mOhm | 1Ohm | 1Ohm | 1Ohm | 1Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 65ns, 28ns | 12ns, 10ns | 12ns, 10ns | 12ns, 10ns | 65ns, 28ns | 65ns, 28ns | 65ns, 28ns | 65ns, 28ns |
| -3db Bandwidth | 300MHz | 70MHz | 70MHz | 70MHz | 300MHz | 300MHz | 300MHz | 300MHz |
| Charge Injection | 1pC | 6.5pC | 6.5pC | 6.5pC | 1pC | 1pC | 1pC | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF, 16pF | 5pF, 5pF | 5pF, 5pF | 5pF, 5pF | 16pF, 16pF | 16pF, 16pF | 16pF, 16pF | 16pF, 16pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 1nA | 1nA | 1nA | 100pA | 100pA | 100pA | 100pA |
| Crosstalk | -80dB @ 1MHz | -96dB @ 100kHz | -96dB @ 100kHz | -96dB @ 100kHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-DIP (0.300", 7.62mm) | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-PDIP | 14-SOIC |
