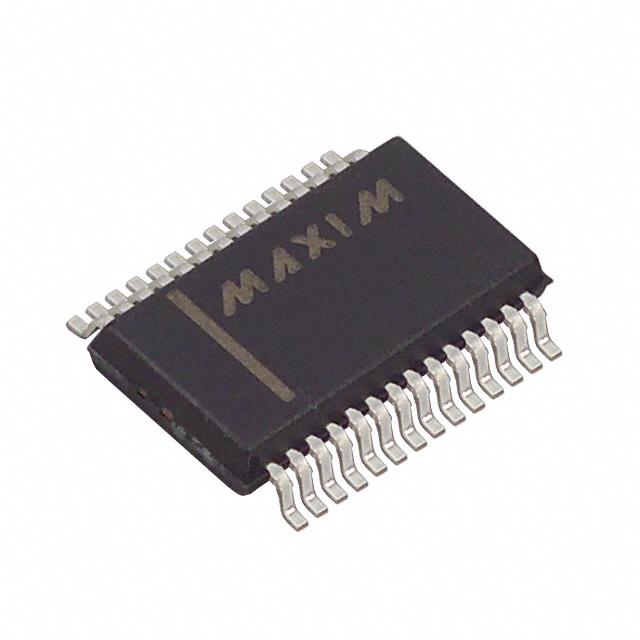

| Part Number | MAX4571CAI+ | MAX4573CAI+ | MAX4571CEI+ | MAX4571CWI+ | MAX4571CAI+T | MAX4572CAI+ | MAX4570CAI+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Active |
| Applications | Audio, Video | Audio, Video | Audio, Video | Audio, Video | Audio, Video | Audio, Video | Audio, Video |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1, 2:1 | 4:2 |
| Switch Circuit | SPST | SPST | SPST | SPST | SPST | SPST, SPDT | - |
| Number of Channels | 11 | 11 | 11 | 11 | 11 | 8 | 2 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 80Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | 2.7V ~ 5.25V | ±2.7V ~ 5.5V |
| -3db Bandwidth | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz | 150MHz | 14MHz |
| Features | Clickless, I²C | Clickless, SPI | Clickless, I²C | Clickless, I²C | Clickless, I²C | Break-Before-Make, Clickless, I²C | Break-Before-Make, Clickless, SPI |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.154", 3.90mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 28-QSOP | 28-SOIC | 28-SSOP | 28-SSOP | 28-SSOP |
