| Part Number | MAX4535EUD+T | MAX4534EUD+T | MAX4535CUD+T | MAX4535EUD+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | DPST - NO | SP4T | DPST - NO | DPST - NO |
| Multiplexer/Demultiplexer Circuit | 2:1 | 4:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 1 | 2 | 2 |
| On-State Resistance (Max) | 400Ohm | 400Ohm | 400Ohm | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm | 2Ohm | 2Ohm | 2Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 36V | 9V ~ 36V | 9V ~ 36V | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns | 275ns, 200ns | 275ns, 200ns | 275ns, 200ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 1pC | 1pC | 1pC | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 4pF | 5pF, 6.5pF | 5pF, 4pF | 5pF, 4pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 500pA | 500pA |
| Crosstalk | -53dB @ 1MHz | -53dB @ 1MHz | -53dB @ 1MHz | -53dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

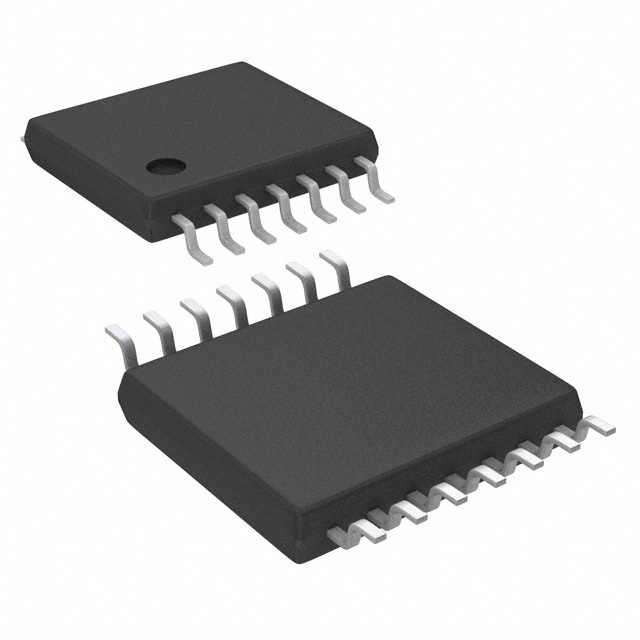

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP | 14-TSSOP | 14-TSSOP | 14-TSSOP |
