MAX4525LEUB+T
  • Share:

Analog Devices Inc./Maxim Integrated MAX4525LEUB+T

Manufacturer No:
MAX4525LEUB+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX4525LEUB+T Datasheet
ECAD Model:
-
Description:

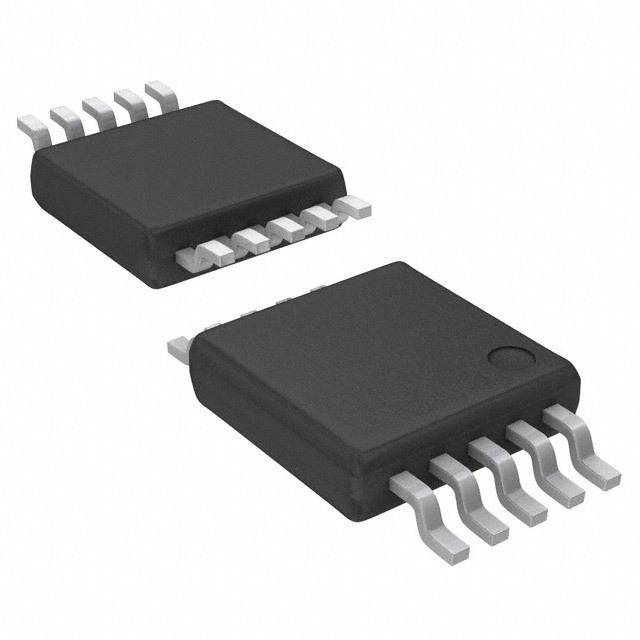

IC SWITCH DPDT SINGLE 10UMAX
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:DPDT
Multiplexer/Demultiplexer Circuit:2:2
Number of Circuits:1
On-State Resistance (Max):80Ohm
Channel-to-Channel Matching (ΔRon):2Ohm
Voltage - Supply, Single (V+):2V ~ 12V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):150ns, 120ns
-3db Bandwidth:200MHz
Charge Injection:0.8pC
Channel Capacitance (CS(off), CD(off)):4pF, 6pF
Current - Leakage (IS(off)) (Max):2nA
Crosstalk:-96dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:10-uMAX/uSOP
0 Remaining View Similar

In Stock

$1.75
57

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX4525LEUB+T MAX4524LEUB+T   MAX4525EUB+T   MAX4525LETB+T   MAX4525LEUB+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active
Switch Circuit DPDT SP4T DPDT DPDT DPDT
Multiplexer/Demultiplexer Circuit 2:2 4:1 2:2 2:2 2:2
Number of Circuits 1 1 1 1 1
On-State Resistance (Max) 80Ohm 80Ohm 150Ohm 80Ohm 80Ohm
Channel-to-Channel Matching (ΔRon) 2Ohm 2Ohm 2Ohm 2Ohm 2Ohm
Voltage - Supply, Single (V+) 2V ~ 12V 2V ~ 12V 2V ~ 12V 2V ~ 12V 2V ~ 12V
Voltage - Supply, Dual (V±) - - - - -
Switch Time (Ton, Toff) (Max) 150ns, 120ns 150ns, 120ns 150ns, 120ns 150ns, 120ns 150ns, 120ns
-3db Bandwidth 200MHz 200MHz - 200MHz 200MHz
Charge Injection 0.8pC 0.8pC 0.8pC 0.8pC 0.8pC
Channel Capacitance (CS(off), CD(off)) 4pF, 6pF 4pF, 14pF 4pF, 6pF 4pF, 6pF 4pF, 6pF
Current - Leakage (IS(off)) (Max) 2nA 2nA 1nA 2nA 2nA
Crosstalk -96dB @ 1MHz - -74dB @ 1MHz -96dB @ 1MHz -96dB @ 1MHz
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) 10-WFDFN Exposed Pad 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-uMAX/uSOP 10-uMAX/uSOP 10-uMAX/uSOP 10-TDFN (3x3) 10-uMAX/uSOP
