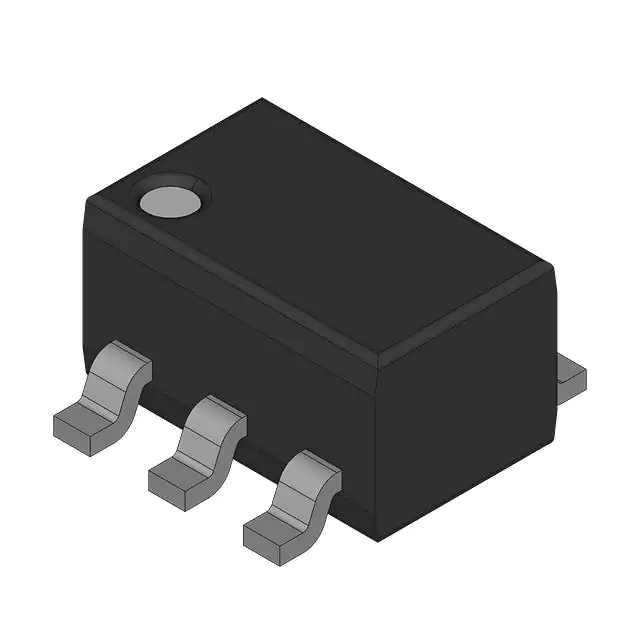

| Part Number | MAX4380EXT-T | MAX4390EXT-T | MAX4380EXT+T |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active |
| Amplifier Type | Voltage Feedback | Current Sense | Voltage Feedback |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | Rail-to-Rail | Rail-to-Rail | Rail-to-Rail |
| Slew Rate | 485V/µs | 500V/µs | 485V/µs |
| Gain Bandwidth Product | - | - | - |
| -3db Bandwidth | 210 MHz | 72 MHz | 210 MHz |
| Current - Input Bias | 8.5 µA | 15 µA | 8.5 µA |
| Voltage - Input Offset | 3 mV | 18 mV | 3 mV |
| Current - Supply | 7.5mA | 3.2mA | 7.5mA |
| Current - Output / Channel | 75 mA | 55 mA | 75 mA |
| Voltage - Supply Span (Min) | 4.5 V | 4.5 V | 4.5 V |
| Voltage - Supply Span (Max) | 11 V | 11 V | 11 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 |
