Please send RFQ , we will respond immediately.
| Part Number | MAX40009ANT+ | MAX40009ANT+T | MAX40008ANT+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Type | General Purpose | General Purpose | General Purpose |
| Number of Elements | 1 | 1 | 1 |
| Output Type | Push-Pull | Push-Pull | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 5mV | 5mV | 5mV |
| Current - Input Bias (Max) | 0.14µA | 0.14µA | 0.14µA |
| Current - Output (Typ) | - | - | - |
| Current - Quiescent (Max) | 17µA | 17µA | 17µA |
| CMRR, PSRR (Typ) | - | - | 70dB CMRR, 60dB PSRR |
| Propagation Delay (Max) | 850ns (Typ) | 850ns (Typ) | 850ns (Typ) |
| Hysteresis | 3mV | 3mV | 3mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

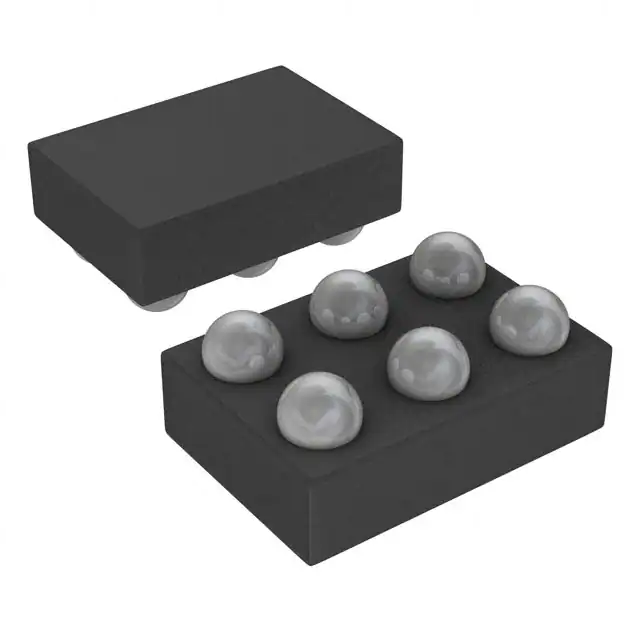

| Package / Case | 6-XFBGA, WLPBGA | 6-XFBGA, WLPBGA | 6-XFBGA, WLPBGA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-WLP (1.08x0.73) | 6-WLP (1.08x0.73) | 6-WLP (1.08x0.73) |
