| Part Number | MAX40002ANS02+T | MAX40002ANS12+T | MAX40003ANS02+T | MAX40004ANS02+T | MAX40005ANS02+T | MAX40002ANS02+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | with Voltage Reference | with Voltage Reference | with Voltage Reference | General Purpose | with Voltage Reference | with Voltage Reference |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Type | Open Drain | Open Drain | Open Drain | Push-Pull | Push-Pull | Open Drain |
| Voltage - Supply, Single/Dual (±) | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V | 1.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 10mV @ 3.3V | 10mV @ 3.3V | 10mV @ 3.3V | 10mV @ 3.3V | 10mV @ 3.3V | 10mV @ 3.3V |
| Current - Input Bias (Max) | 0.03µA | 0.03µA | 0.03µA | 0.03µA | 0.03µA | 0.03µA |
| Current - Output (Typ) | - | - | - | - | - | - |
| Current - Quiescent (Max) | 1.1µA | 1.1µA | 1.1µA | 1.3µA | 1.1µA | 1.1µA |
| CMRR, PSRR (Typ) | 70dB PSRR (Min) | - | 70dB PSRR (Min) | - | 70dB PSRR (Min) | 70dB PSRR (Min) |
| Propagation Delay (Max) | 9µs (Typ) | 9µs (Typ) | 9µs (Typ) | 25µs | 9µs (Typ) | 9µs (Typ) |
| Hysteresis | 8mV | 8mV | 8mV | 8mV | 8mV | 8mV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

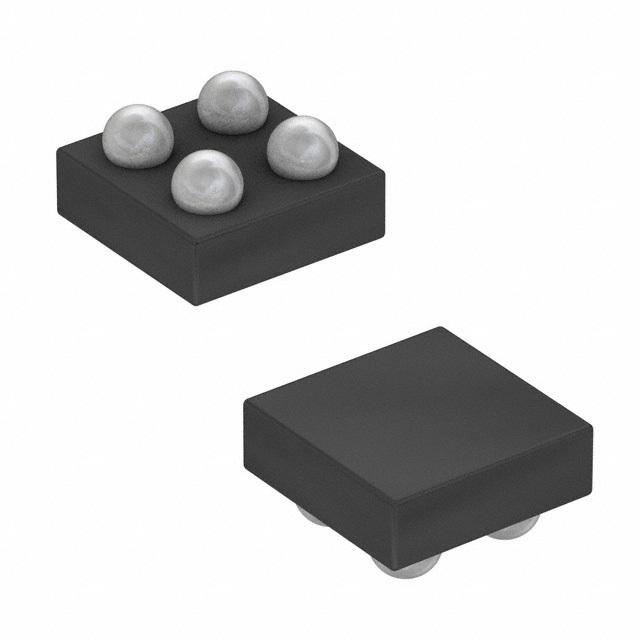

| Package / Case | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA | 4-XFBGA, WLBGA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-WLP (0.73x0.73) | 4-WLP (0.73x0.73) | 4-WLP (0.73x0.73) | 4-WLP (0.73x0.73) | 4-WLP (0.73x0.73) | 4-WLP (0.73x0.73) |
