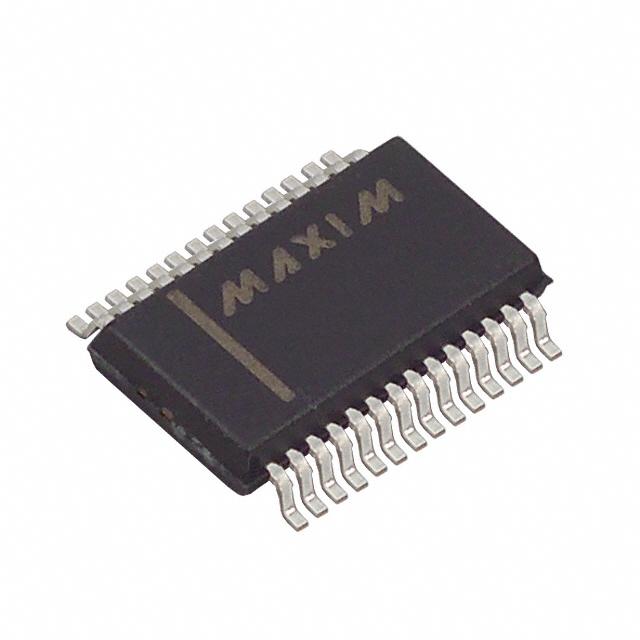

| Part Number | MAX396CAI+ | MAX396CWI+ | MAX397CAI+ | MAX396CPI+ | MAX396CAI+T | MAX396CAI |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | - | - | - | - | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 16:1 | 8:1 | 16:1 | 16:1 | 16:1 |
| Number of Circuits | 1 | 1 | 2 | 1 | 1 | 1 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.8Ohm | 1.8Ohm | 1.8Ohm | 1.8Ohm | 1.8Ohm | 1.8Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 16V | 2.7V ~ 16V | 2.7V ~ 16V | 2.7V ~ 16V | 2.7V ~ 16V | 2.7V ~ 16V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns | 150ns, 150ns | 150ns, 150ns | 150ns, 150ns | 150ns, 150ns | 150ns, 150ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 2pC | 2pC | 2pC | 2pC | 2pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 80pF | 11pF, 80pF | 11pF, 80pF | 11pF, 80pF | 11pF, 80pF | 11pF, 80pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 100pA | 100pA | 100pA |
| Crosstalk | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz | -92dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SOIC (0.295", 7.50mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-DIP (0.600", 15.24mm) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SOIC | 28-SSOP | 28-PDIP | 28-SSOP | 28-SSOP |
