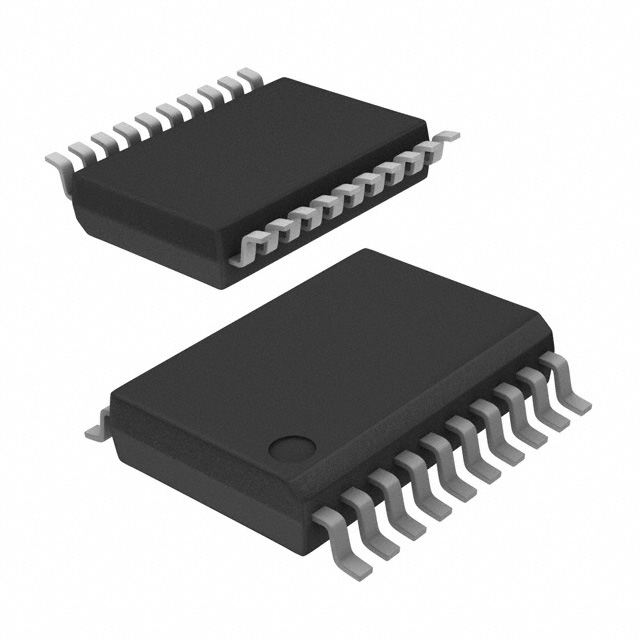

| Part Number | MAX394EAP+T | MAX394EUP+T | MAX394EWP+T | MAX394CAP+T | MAX394EAP+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 4 | 4 | 4 | 4 | 4 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 500mOhm | 500mOhm | 500mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 15V | 2.7V ~ 15V | 2.7V ~ 15V | 2.7V ~ 15V | 2.7V ~ 15V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V | ±2.7V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns | 130ns, 75ns | 130ns, 75ns | 130ns, 75ns | 130ns, 75ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | 5pC | 5pC | 5pC | 5pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF | 12pF, 12pF | 12pF, 12pF | 12pF, 12pF | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 200pA | 200pA | 200pA | 200pA | 200pA |
| Crosstalk | -88dB @ 1MHz | -88dB @ 1MHz | -88dB @ 1MHz | -88dB @ 1MHz | -88dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP | 20-TSSOP | 20-SOIC | 20-SSOP | 20-SSOP |
