| Part Number | MAX38904BATD+ | MAX38904BATD+T | MAX38904AATD+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 1.2V |
| Voltage - Output (Max) | 5V | 5V | 5V |
| Voltage Dropout (Max) | 0.3V @ 2A | 0.3V @ 2A | 0.3V @ 2A |
| Current - Output | 2A | 2A | 2A |
| Current - Quiescent (Iq) | 1.3 mA | 1.3 mA | 1.3 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 70dB ~ 40dB (1kHz ~ 1MHz) | 70dB ~ 40dB (1kHz ~ 1MHz) | 70dB ~ 40dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Current, Soft Start | Over Current, Over Temperature, Reverse Current, Soft Start | Over Current, Over Temperature, Reverse Current, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

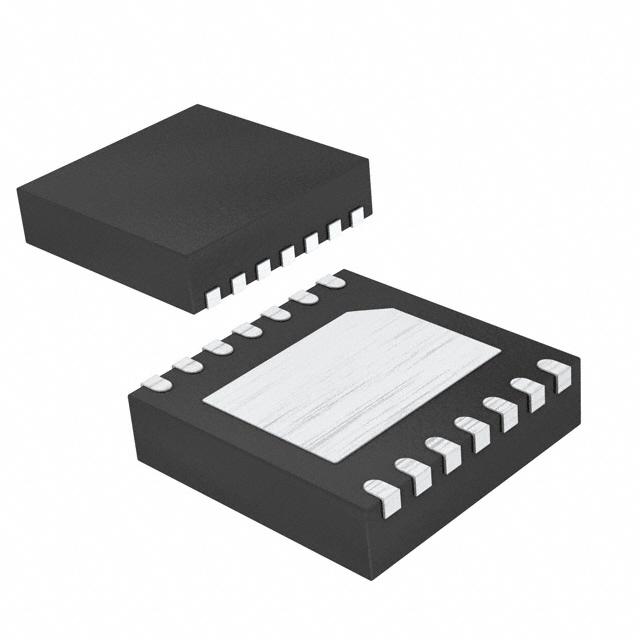

| Package / Case | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-TDFN (3x3) | 14-TDFN (3x3) | 14-TDFN (3x3) |
