| Part Number | MAX358MJE/883B | MAX359MJE/883B | MAX378MJE/883B |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Switch Circuit | - | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 |
| On-State Resistance (Max) | 1.8kOhm | 1.8kOhm | 3kOhm |
| Channel-to-Channel Matching (ΔRon) | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V | ±4.5V ~ 18V | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 500ns, 500ns | 500ns, 500ns | 750ns, 500ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 25pF | - | 5pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 5µA | 5µA | 500pA |
| Crosstalk | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole |

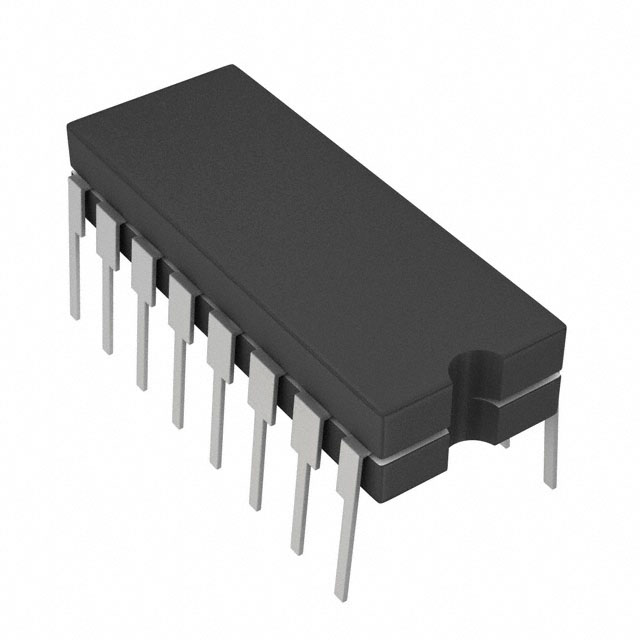

| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-CDIP |
