MAX337EAI+T
  • Share:

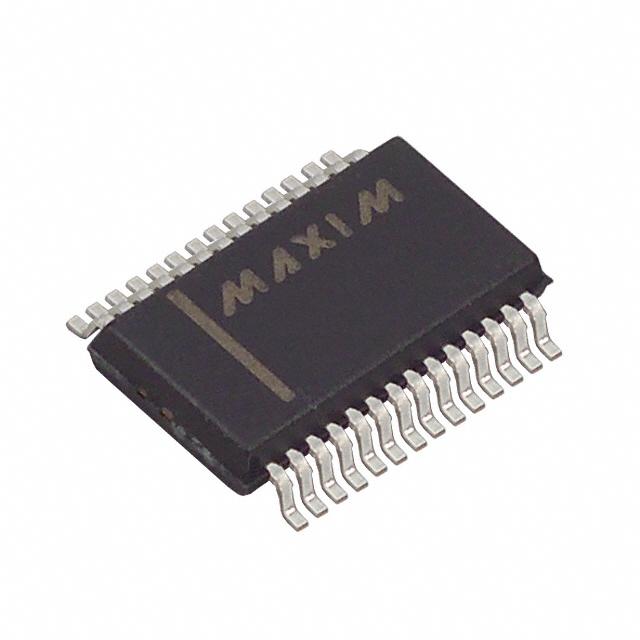

Analog Devices Inc./Maxim Integrated MAX337EAI+T

Manufacturer No:
MAX337EAI+T
Manufacturer:
Analog Devices Inc./Maxim Integrated
Package:
Tape & Reel (TR)
Datasheet:
MAX337EAI+T Datasheet
ECAD Model:
-
Description:
IC MULTIPLEXER DUAL 8X1 28SSOP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:-
Multiplexer/Demultiplexer Circuit:8:1
Number of Circuits:2
On-State Resistance (Max):400Ohm
Channel-to-Channel Matching (ΔRon):5Ohm
Voltage - Supply, Single (V+):4.5V ~ 20V
Voltage - Supply, Dual (V±):±4.5V ~ 20V
Switch Time (Ton, Toff) (Max):500ns, 500ns
-3db Bandwidth:-
Charge Injection:3.5pC
Channel Capacitance (CS(off), CD(off)):2pF, 20pF
Current - Leakage (IS(off)) (Max):20pA
Crosstalk:-86dB @ 100kHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:28-SSOP (0.209", 5.30mm Width)
Supplier Device Package:28-SSOP
0 Remaining View Similar

In Stock

$8.59
8

Please send RFQ , we will respond immediately.

Similar Products

Part Number MAX337EAI+T MAX337EWI+T   MAX336EAI+T   MAX337CAI+T   MAX337EAI+
Manufacturer Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated Analog Devices Inc./Maxim Integrated
Product Status Active Active Active Active Active
Switch Circuit - - - - -
Multiplexer/Demultiplexer Circuit 8:1 8:1 16:1 8:1 8:1
Number of Circuits 2 2 1 2 2
On-State Resistance (Max) 400Ohm 400Ohm 400Ohm 400Ohm 400Ohm
Channel-to-Channel Matching (ΔRon) 5Ohm 5Ohm 5Ohm 5Ohm 5Ohm
Voltage - Supply, Single (V+) 4.5V ~ 20V 4.5V ~ 20V 4.5V ~ 20V 4.5V ~ 20V 4.5V ~ 20V
Voltage - Supply, Dual (V±) ±4.5V ~ 20V ±4.5V ~ 20V ±4.5V ~ 20V ±4.5V ~ 20V ±4.5V ~ 20V
Switch Time (Ton, Toff) (Max) 500ns, 500ns 500ns, 500ns 500ns, 500ns 500ns, 500ns 500ns, 500ns
-3db Bandwidth - - - - -
Charge Injection 3.5pC 3.5pC 3.5pC 3.5pC 3.5pC
Channel Capacitance (CS(off), CD(off)) 2pF, 20pF 2pF, 20pF 2pF, 20pF 2pF, 20pF 2pF, 20pF
Current - Leakage (IS(off)) (Max) 20pA 20pA 20pA 20pA 20pA
Crosstalk -86dB @ 100kHz -86dB @ 100kHz -86dB @ 100kHz -86dB @ 100kHz -86dB @ 100kHz
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) 0°C ~ 70°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 28-SSOP (0.209", 5.30mm Width) 28-SOIC (0.295", 7.50mm Width) 28-SSOP (0.209", 5.30mm Width) 28-SSOP (0.209", 5.30mm Width) 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package 28-SSOP 28-SOIC 28-SSOP 28-SSOP 28-SSOP
