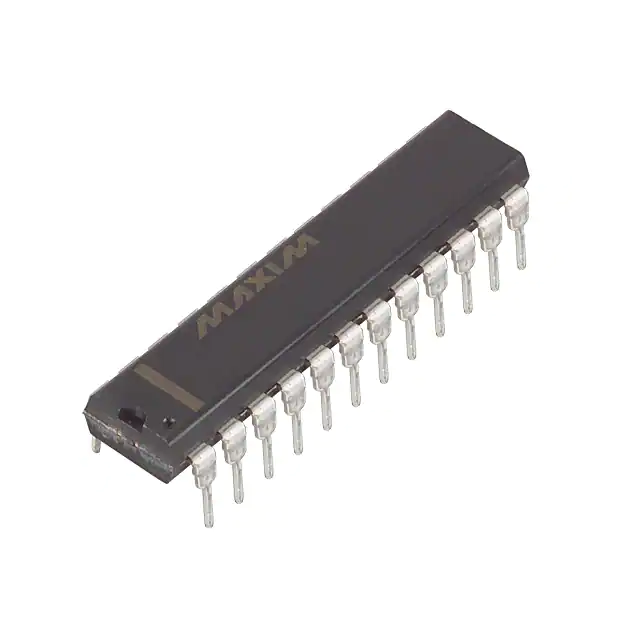

| Part Number | MAX335CNG+ | MAX335CWG+ | MAX335ENG+ | MAX335CNG |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 8 | 8 | 8 | 8 |
| On-State Resistance (Max) | 150Ohm | 150Ohm | 150Ohm | 150Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - |
| Voltage - Supply, Single (V+) | - | - | - | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 400ns, 400ns | 400ns, 400ns | 400ns, 400ns | 400ns, 400ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF | 2pF, 2pF | 2pF, 2pF | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 1nA |
| Crosstalk | -100dB @ 100kHz | -100dB @ 100kHz | -100dB @ 100kHz | -100dB @ 100kHz |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-SOIC | 24-PDIP | 24-PDIP |
