Please send RFQ , we will respond immediately.

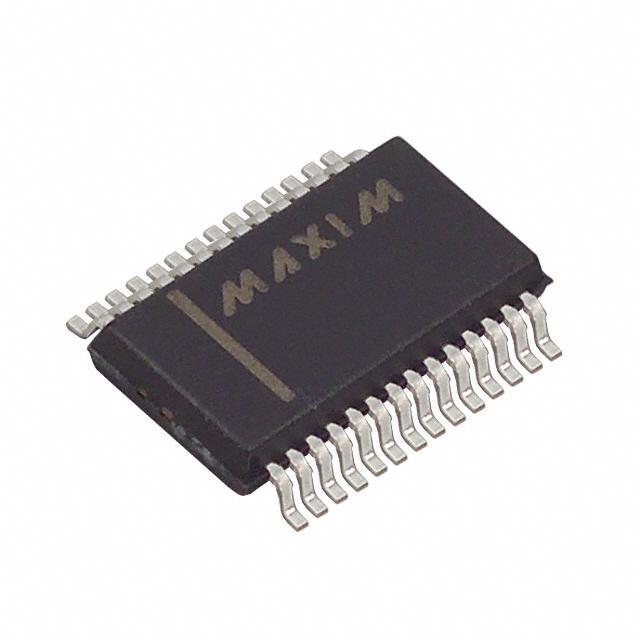

| Part Number | MAX3158CAI+ | MAX3158CAI+T | MAX3158EAI+ | MAX3158CPI+ | MAX3157CAI+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active |
| Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Protocol | RS422, RS485 | RS422, RS485 | RS422, RS485 | RS422, RS485 | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Duplex | Full | Full, Half | Full, Half | Full | Full |
| Receiver Hysteresis | 25 mV | 25 mV | 25 mV | 25 mV | 25 mV |
| Data Rate | 250kbps | 250kbps | 250kbps | 250kbps | 250kbps |
| Voltage - Supply | - | 4.5V ~ 5.5V | 4.5V ~ 5.5V | - | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-SSOP (0.209", 5.30mm Width) | 28-DIP (0.300", 7.62mm) | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP | 28-SSOP | 28-SSOP | 28-PDIP | 28-SSOP |
