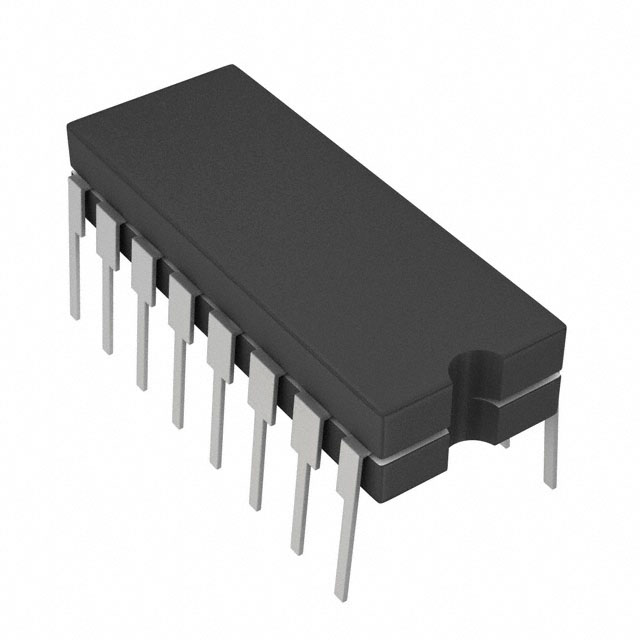

| Part Number | MAX308MJE | MAX303MJE |
|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active |
| Switch Circuit | - | SPDT |
| Multiplexer/Demultiplexer Circuit | 8:1 | 2:1 |
| Number of Circuits | 1 | 2 |
| On-State Resistance (Max) | 100Ohm | 30Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm | 500mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 30V, ±5V ~ 20V | 10V ~ 30V, ±4.5V ~ 20V |
| Voltage - Supply, Dual (V±) | 5V ~ 30V, ±5V ~ 20V | 10V ~ 30V, ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns | 150ns, 100ns |
| -3db Bandwidth | - | - |
| Charge Injection | 2pC | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 26pF | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 750pA | 250pA |
| Crosstalk | -92dB @ 100kHz | -90dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP |
