Please send RFQ , we will respond immediately.
| Part Number | MAX2688LEWS+T10 | MAX2689LEWS+T10 | MAX2686LEWS+T10 | MAX2687LEWS+T10 | MAX2688EWS+T10 |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Frequency | 1575.42MHz | 1575MHz ~ 1610MHz | 1575.42MHz | 1575MHz ~ 1610MHz | 1575.42MHz |
| P1dB | -10dBm | - | -10dBm | - | -10dBm |
| Gain | 15.4dB | 15.1dB | 19dB | 17.8dB | 15.4dB |
| Noise Figure | 0.75dB | 1.2dB | 0.75dB | 0.85dB | 0.75dB |
| RF Type | GPS/GNSS | Galileo, GLONASS, GPS | GPS/GNSS | Galileo, GLONASS, GPS | GPS/GNSS |
| Voltage - Supply | 1.6V ~ 3.3V | 1.6V ~ 3.6V | 1.6V ~ 3.3V | 1.6V ~ 3.6V | 1.6V ~ 3.3V |
| Current - Supply | 4.1mA | 7.6mA | 4.1mA | 7.6mA | 4.1mA |
| Test Frequency | 1575.42MHz | 1575.42MHz | 1575.42MHz | 1575.42MHz | 1575.42MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

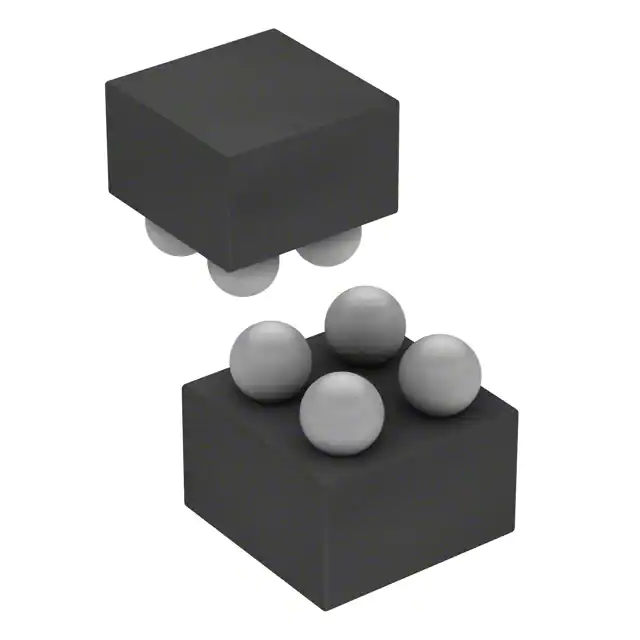

| Package / Case | 4-WFBGA, WLBGA | 4-WFBGA, WLBGA | 4-WFBGA, WLBGA | 4-WFBGA, WLBGA | 4-WFBGA, WLBGA |
| Supplier Device Package | 4-WLP (0.84x0.84) | 4-WLP (0.84x0.84) | 4-WLP (0.84x0.84) | 4-WLP (0.84x0.84) | 4-WLP (0.84x0.84) |
