| Part Number | MAX25210ATAA8/V+ | MAX25210ATAB8/V+ | MAX25210ATAD8/V+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 0.77V @ 300mA | 0.5V @ 200mA | 0.13V @ 50mA |
| Current - Output | 300mA | 200mA | 50mA |
| Current - Quiescent (Iq) | 38 µA | 38 µA | 38 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Enable, Reset Out | Enable, Reset Out | Enable, Reset Out |
| Protection Features | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO | Over Current, Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

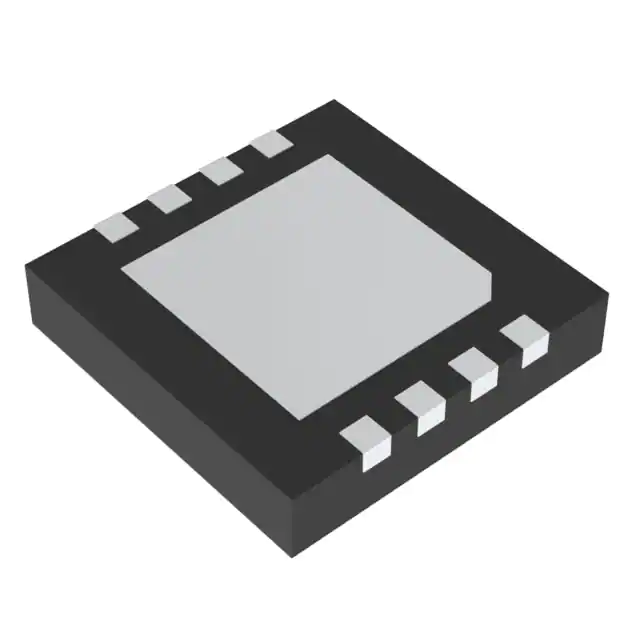

| Package / Case | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) | 8-TDFN (3x3) | 8-TDFN (3x3) |
