Please send RFQ , we will respond immediately.

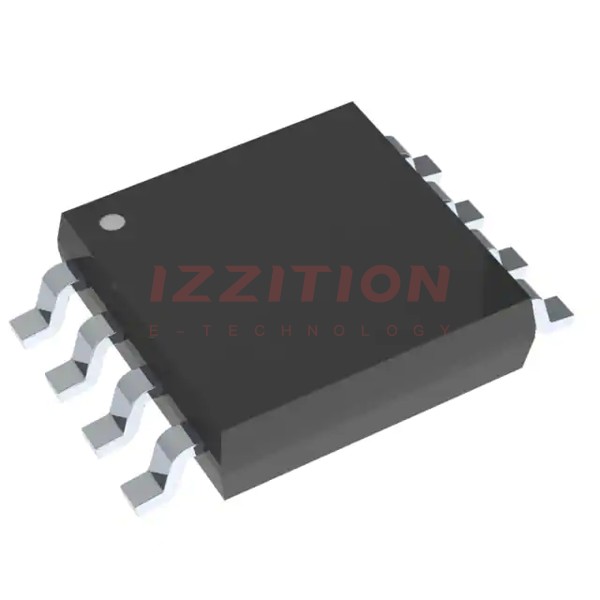

| Part Number | MAX22025AWA+ | MAX22026AWA+ | MAX22027AWA+ | MAX22025FAWA+ | MAX22025AWA+T | MAX22028AWA+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Transceiver | Transceiver, Isolated | Transceiver, Isolated | Transceiver | Transceiver | Transceiver |
| Protocol | RS422, RS485 | RS422, RS485 | RS422, RS485 | RS422, RS485 | RS422, RS485 | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 |
| Duplex | Half | Half | Half | Half | Half | Half |
| Receiver Hysteresis | 410 mV | 25 mV | 25 mV | 410 mV | 410 mV | 410 mV |
| Data Rate | 500kbps | 16Mbps | 500kbps | 16Mbps | 500kbps | 16Mbps |
| Voltage - Supply | 1.71V ~ 5.5V, 4.75V ~ 5.25V | 1.71V ~ 5.25V, 4.75V ~ 5.5V | 1.71V ~ 5.25V, 4.75V ~ 5.5V | 1.71V ~ 5.25V, 4.75V ~ 5.5V | 1.71V ~ 5.5V, 4.75V ~ 5.25V | 1.71V ~ 5.5V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
