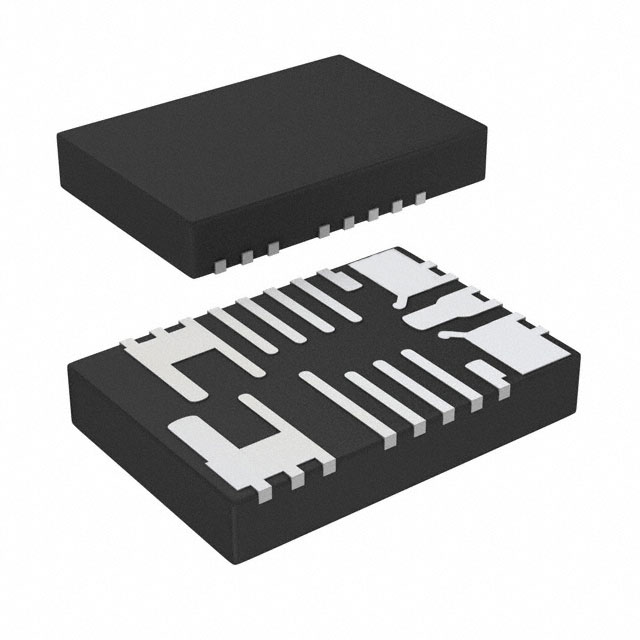

| Part Number | MAX20745EPL+ | MAX20745EPL+T | MAX20735EPL+ | MAX20743EPL+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 0.65V | 0.65V | 0.65V | 0.65V |
| Voltage - Output (Max) | 5.5V | 5.5V | 5.5V | 5.5V |
| Current - Output | 25A | 25A | 40A | 35A |
| Frequency - Switching | 400kHz ~ 900kHz | 400kHz ~ 900kHz | 400kHz ~ 900kHz | 400kHz ~ 900kHz |
| Synchronous Rectifier | No | No | No | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 15-VFQFN, FCQFN | 15-VFQFN, FCQFN | 15-VFQFN, FCQFN | 15-VFQFN, FCQFN |
| Supplier Device Package | 15-FCQFN (6x4.15) | 15-FCQFN (6x4.15) | 15-FCQFN (9x4.15) | 15-FCQFN (8x4.15) |
