| Part Number | MAX2056ETX+ | MAX2057ETX+ | MAX2056ETX+T | MAX2056ETX |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete |
| Frequency | 800MHz ~ 1GHz | 1.7GHz ~ 2.5GHz | 800MHz ~ 1GHz | 800MHz ~ 1GHz |
| P1dB | 23.5dBm | 23.8dBm | 23.5dBm | 23.5dBm |
| Gain | 15.5dB | 13.5dB ~ 17.5dB | 15.5dB | 15.5dB |
| Noise Figure | 4.5dB | 6dB | 4.5dB | 4.5dB |
| RF Type | Cellular, ATE, GSM, EDGE, ISM, W-CDMA, 802.16/WiMax, CDMA2000 | Cellular, ATE, GSM, EDGE, ISM, W-CDMA, 802.16/WiMax, CDMA2000 | Cellular, ATE, GSM, EDGE, ISM, W-CDMA, 802.16/WiMax, CDMA2000 | Cellular, ATE, GSM, EDGE, ISM, W-CDMA, 802.16/WiMax, CDMA2000 |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Supply | 136mA ~ 167mA | 180mA ~ 230mA | 136mA ~ 167mA | 136mA ~ 167mA |
| Test Frequency | 900MHz | 2.1GHz | 900MHz | 900MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

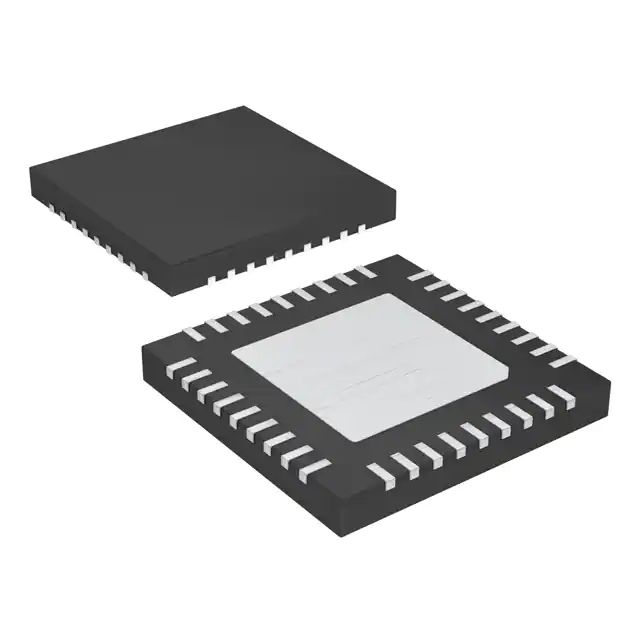

| Package / Case | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) |
