Please send RFQ , we will respond immediately.
| Part Number | MAX20457ATIC/VY+T | MAX20457ATID/VY+T | MAX20457ATIE/VY+T | MAX20457ATIG/VY+T | MAX20457ATIF/VY+T | MAX20057ATIC/VY+T | MAX20457ATIA/VY+T | MAX20457ATIB/VY+T | MAX20457ATIC/VY+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Up | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Boost | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Adjustable | Fixed | Fixed | Fixed |
| Number of Outputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 2V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V | 40V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V | 1V | 3.3V, 5V | 3.3V, 5V | 3.3V, 5V |
| Voltage - Output (Max) | - | - | - | - | - | 14V | - | - | - |
| Current - Output | - | - | - | - | - | 3.5A | - | - | - |
| Frequency - Switching | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

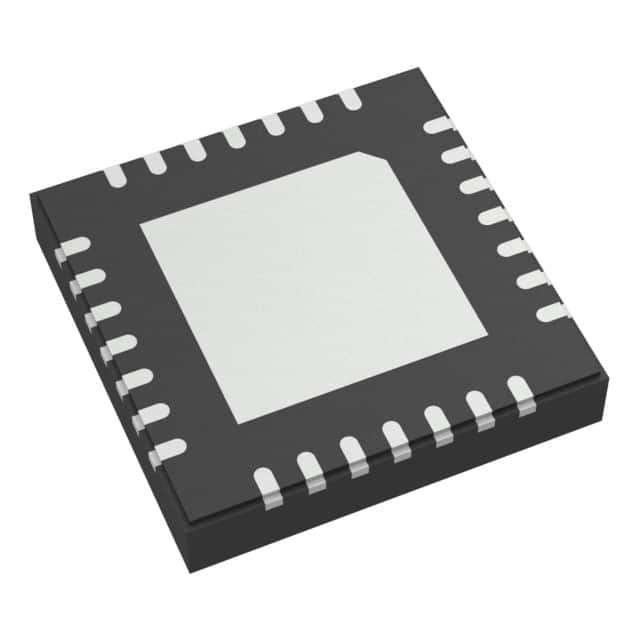

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) |
