| Part Number | MAX20090BATP/VY+ | MAX20090BATP/VY+T | MAX20090ATP/VY+ | MAX20090BATP/V+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Type | DC DC Controller | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | No | No | No |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 5V | 5V | 5V | 5V |
| Voltage - Supply (Max) | 65V | 65V | 65V | 65V |
| Voltage - Output | 65V | 65V | 65V | 65V |
| Current - Output / Channel | - | - | - | - |
| Frequency | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2MHz | 200kHz ~ 2.2MHz |
| Dimming | Analog, PWM | Analog, PWM | Analog, PWM | Analog, PWM |
| Applications | Automotive, Commercial & Industrial Lighting | Automotive, Commercial & Industrial Lighting | Automotive, Lighting | Automotive, Commercial & Industrial Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount |

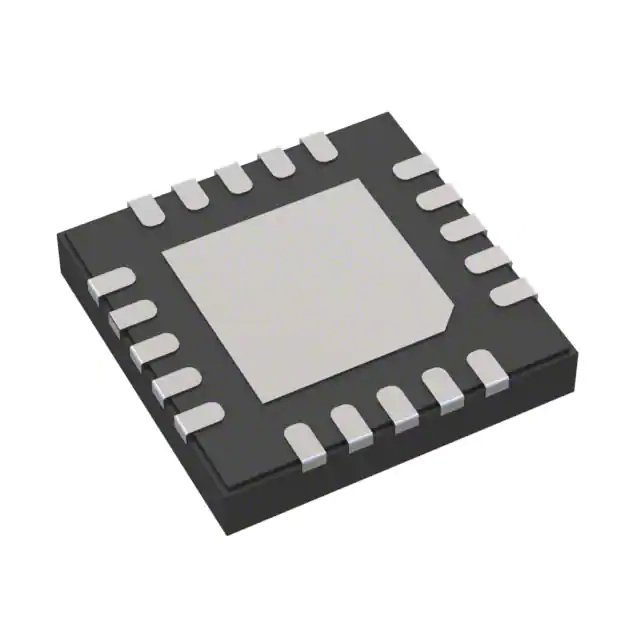

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN (4x4) |
