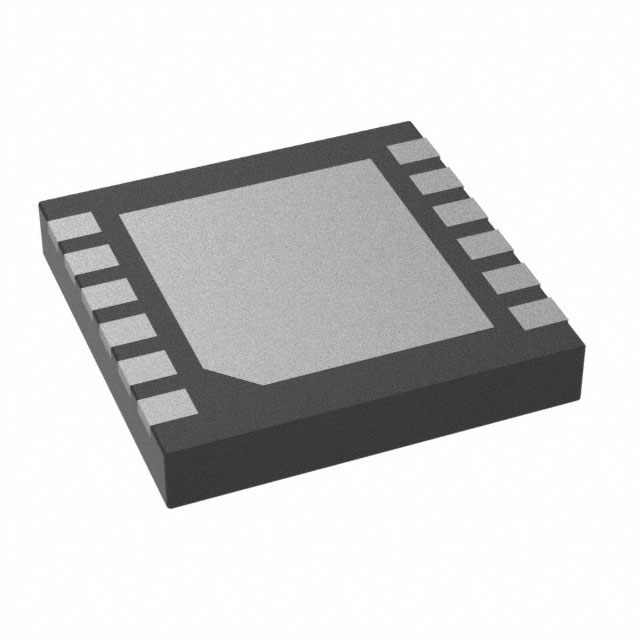

| Part Number | MAX20077ATCD/VY+T | MAX20077ATCE/VY+T | MAX20077ATCD2/VY+T | MAX20077ATCA/VY+T | MAX20077ATCB/VY+T | MAX20077ATCC/VY+T | MAX20077ATCD/VY+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 10V | 10V | 10V | 10V | 10V | 10V | 10V |
| Current - Output | 2.5A | 2.5A | 2.5A | 2.5A | 2.5A | 2A | 2.5A |
| Frequency - Switching | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 400kHz, 2.1MHz | 400kHz, 2.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) | 12-TDFN-EP (3x3) |
