Please send RFQ , we will respond immediately.
| Part Number | MAX20048ATG/VY+T | MAX20048ATGB/VY+T | MAX20048ATGD/VY+T | MAX20048ATGC/VY+T | MAX20048ATGA/VY+T | MAX20048ATG/V+T | MAX20048ATG/VY+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete | Obsolete |
| Output Type | PWM | PWM | PWM | PWM | PWM | PWM | PWM |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 40V | 2V ~ 40V | 2V ~ 40V | 2V ~ 40V | 2V ~ 40V | 2V ~ 40V | 2V ~ 40V |
| Frequency - Switching | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz |
| Duty Cycle (Max) | - | - | - | - | - | - | - |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - | - | - | - |
| Control Features | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

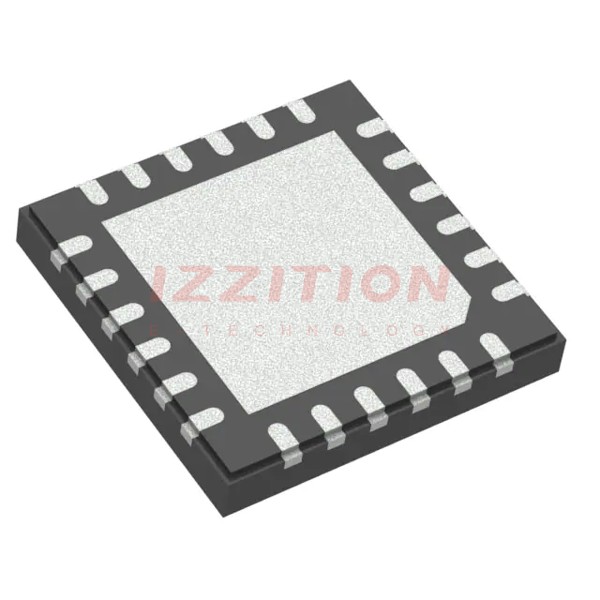

| Package / Case | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) | 24-SWTQFN (4x4) |
