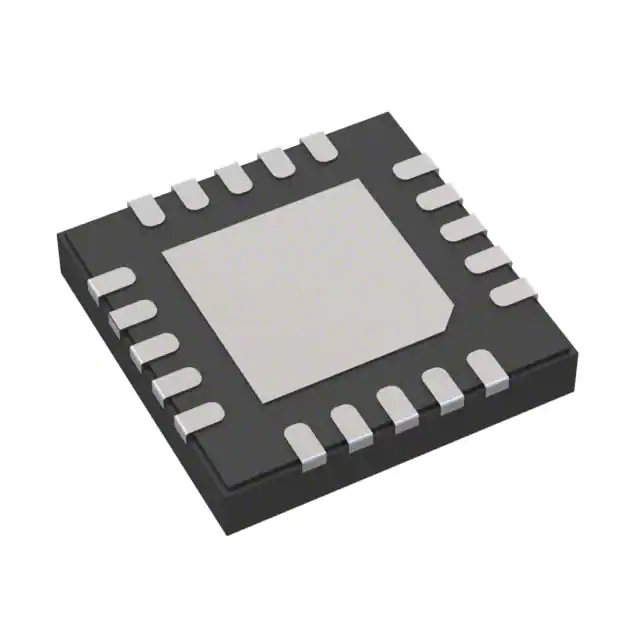

| Part Number | MAX20040BATPA/VY+T | MAX20040BATPB/VY+T | MAX20040DATPA/VY+T | MAX20040CATPA/VY+T | MAX20040ATPA/VY+T | MAX20040BATPA/VY+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Programmable (Fixed) | Programmable (Fixed) | Programmable (Fixed) | Programmable (Fixed) | Programmable (Fixed) | Programmable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 2V | 2V | 2V | 2V | 2V | 2V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | - | - | - | - | - | - |
| Voltage - Output (Max) | 15V | 15V | 15V | 15V | 15V | 15V |
| Current - Output | 1.2A | 1.2A | 1.2A | 1.2A | 1.2A | 1.2A |
| Frequency - Switching | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) |
