| Part Number | MAX20039BATPB/VY+T | MAX20039BATPX/VY+T | MAX20039BATPB/VY+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Obsolete | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Programmable (Fixed) | Programmable (Fixed) | Programmable (Fixed) |
| Number of Outputs | 1 | 1 | 1 |
| Voltage - Input (Min) | 2V | 2V | 2V |
| Voltage - Input (Max) | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 4V (5V) | 4V (5V) | 4V (5V) |
| Voltage - Output (Max) | 15V | 15V | 15V |
| Current - Output | 600mA | 600mA | 600mA |
| Frequency - Switching | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

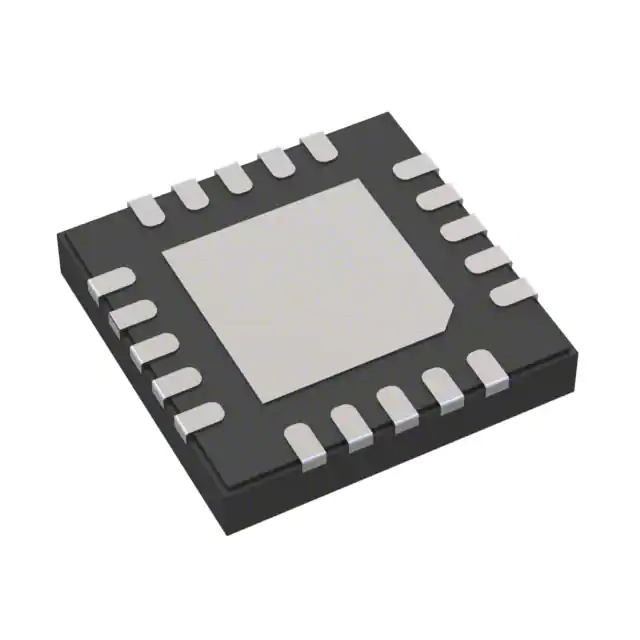

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) | 20-TQFN-EP (4x4) |
