Please send RFQ , we will respond immediately.
| Part Number | MAX20029BATIB/V+ | MAX20029BATIC/V+ | MAX20029BATID/V+ | MAX20029CATIB/V+ | MAX20029BATIB/V+T | MAX20029ATIB/V+ | MAX20029BATIA/V+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V | 3V | 3V | 3V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1V | 1V | 1V | 1V | 1V | 1V | 1V |
| Voltage - Output (Max) | 4V | 4V | 4V | 4V | 4V | 4V | 4V |
| Current - Output | 3A | 3A | 3A | 1.5A | 3A | 1.5A | 3A |
| Frequency - Switching | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

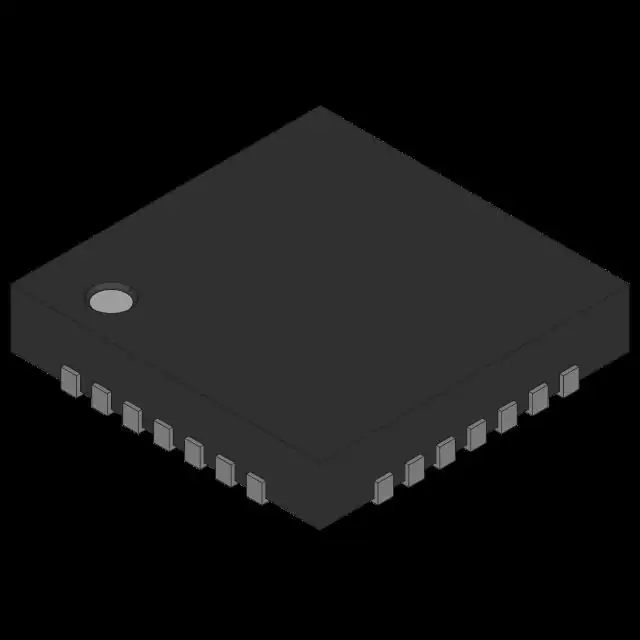

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) | 28-TQFN (5x5) |
