Please send RFQ , we will respond immediately.
| Part Number | MAX20006AFOB/VY+T | MAX20006AFOD/VY+T | MAX20006AFOC/VY+T | MAX20006EAFOB/VY+T | MAX20008AFOB/VY+T | MAX20004AFOB/VY+T | MAX20006AFOA/VY+T | MAX20006AFOB/VY+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 3.3V | 3.3V | 5V | 3.3V | 3.3V | 3.3V | 5V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Current - Output | 6A | 6A | 6A | 6A | 8A | 4A | 6A | 6A |
| Frequency - Switching | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 2.1MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz | 220kHz ~ 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |

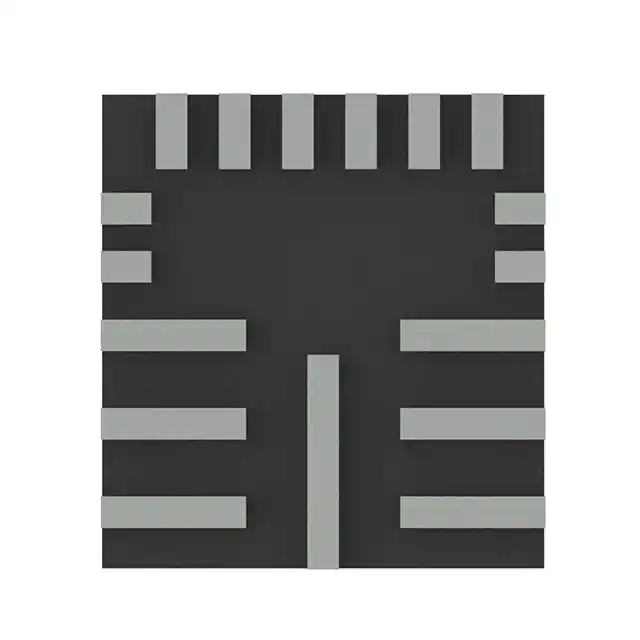

| Package / Case | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN | 17-PowerWFQFN |
| Supplier Device Package | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) | 17-FC2QFN (3.5x3.75) |
