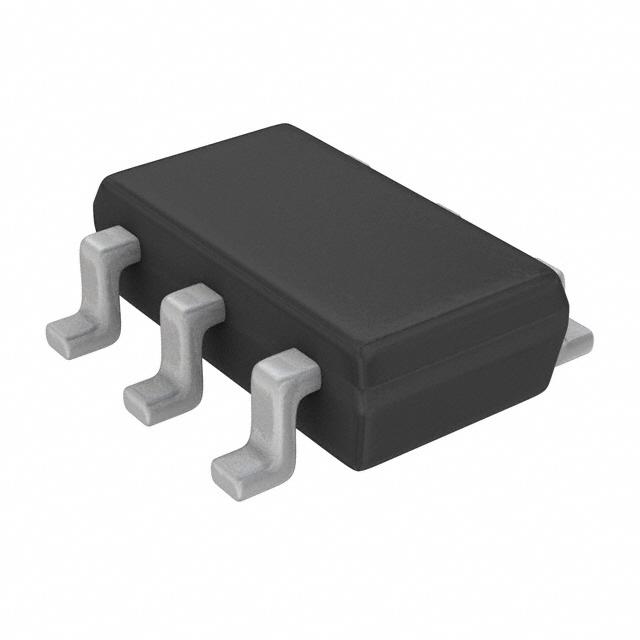

| Part Number | MAX1976AEZT150+T | MAX1976AEZT160+T | MAX1976AEZT180+T | MAX1976AETT150+T | MAX1976AEZT120+T |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Active |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Voltage - Output (Min/Fixed) | 1.5V | 1.6V | 1.8V | 1.5V | 1.2V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | 0.2V @ 300mA | - | - |
| Current - Output | 300mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 140 µA | 140 µA | 140 µA | 140 µA | 140 µA |
| Current - Supply (Max) | 90 µA | 90 µA | 90 µA | 90 µA | 90 µA |
| PSRR | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) | 70dB (1kHz) |
| Control Features | Enable, Reset | Enable, Reset | Enable, Reset | Enable, Reset | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | SOT-23-6 Thin, TSOT-23-6 | 6-WDFN Exposed Pad | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 | TSOT-23-6 | TSOT-23-6 | 6-TDFN (3x3) | TSOT-23-6 |
