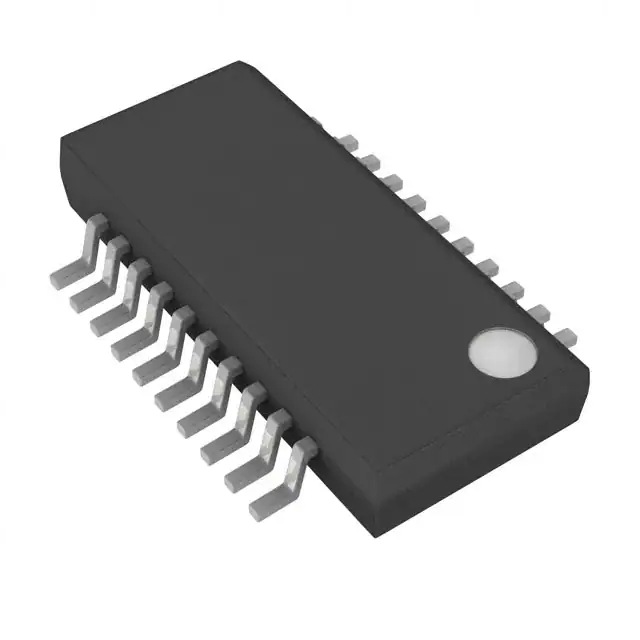

| Part Number | MAX1960EEP+T | MAX1961EEP+T | MAX1962EEP+T | MAX1960EEP+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V | 2.35V ~ 5.5V |
| Frequency - Switching | 500kHz, 1MHz | 500kHz, 1MHz | 500kHz, 1MHz | 500kHz, 1MHz |
| Duty Cycle (Max) | 92% | 92% | 92% | 92% |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Clock Sync | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control | Current Limit, Enable, Frequency Control | Current Limit, Enable, Frequency Control | Current Limit, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-QSOP | 20-QSOP | 20-QSOP | 20-QSOP |
