Please send RFQ , we will respond immediately.
| Part Number | MAX17502FATB+T | MAX17502GATB+T | MAX17501FATB+T | MAX17502AATB+T | MAX17502BATB+T | MAX17502EATB+T | MAX17502FATB+ |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | - | - | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | - | - | Positive | Positive |
| Topology | Buck | Buck | Buck | - | - | Buck | Buck |
| Output Type | Fixed | Adjustable | Fixed | - | - | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | - | - | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | - | - | 4.5V | 4.5V |
| Voltage - Input (Max) | 60V | 60V | 60V | - | - | 60V | 60V |
| Voltage - Output (Min/Fixed) | 5V | 0.9V | 5V | - | - | 3.3V | 5V |
| Voltage - Output (Max) | - | 55.2V | - | - | - | - | - |
| Current - Output | 1A | 1A | 500mA | - | - | 1A | 1A |
| Frequency - Switching | 600kHz | 600kHz | 600kHz | - | - | 600kHz | 600kHz |
| Synchronous Rectifier | Yes | Yes | Yes | - | - | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

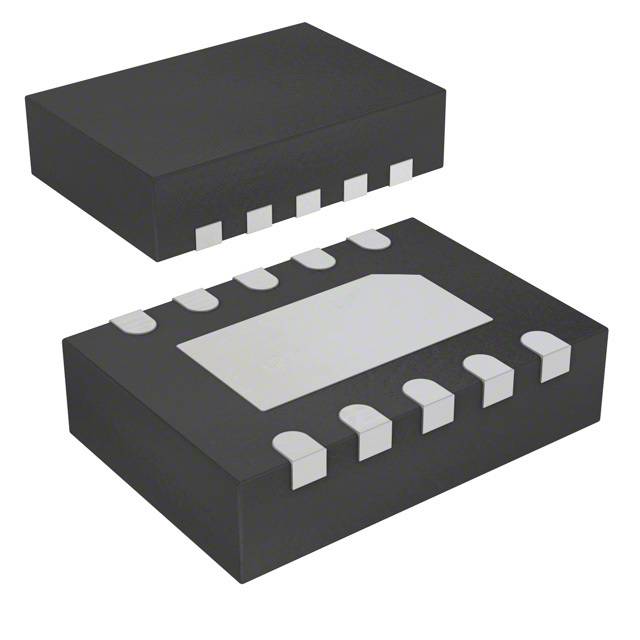

| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) |
