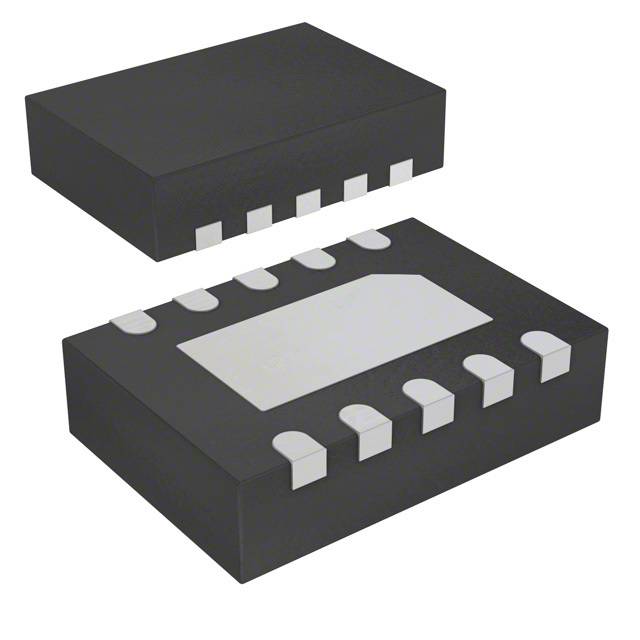

| Part Number | MAX17501FATB+ | MAX17501FATB+T | MAX17501GATB+ | MAX17501HATB+ | MAX17502FATB+ | MAX17501AATB+ | MAX17501BATB+ | MAX17501EATB+ |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Fixed | Adjustable | Adjustable | Fixed | Fixed | Fixed | Fixed |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 0.9V | 0.9V | 5V | 3.3V | 5V | 3.3V |
| Voltage - Output (Max) | - | - | 55.2V | 55.2V | - | - | - | - |
| Current - Output | 500mA | 500mA | 500mA | 500mA | 1A | 500mA | 500mA | 500mA |
| Frequency - Switching | 600kHz | 600kHz | 600kHz | 300kHz | 600kHz | 600kHz | 600kHz | 600kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) | 10-TDFN (3x2) |
