Please send RFQ , we will respond immediately.

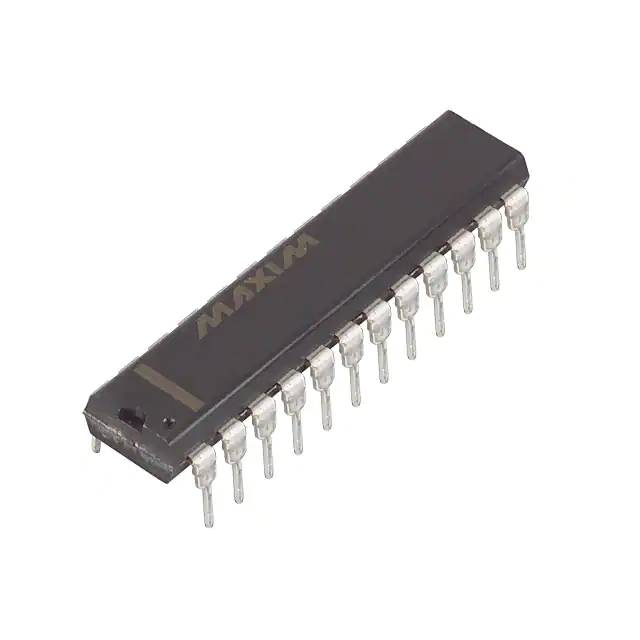

| Part Number | MAX172ACNG | MAX172BCNG | MAX178ACNG | MAX172ACWG | MAX172AENG | MAX172ACNG+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Number of Bits | 12 | 12 | 12 | 12 | 12 | - |
| Sampling Rate (Per Second) | 100k | 100k | 17k | 100k | 100k | - |
| Number of Inputs | 1 | 1 | 1 | 1 | 1 | - |
| Input Type | Single Ended | Single Ended | Single Ended | Single Ended | Single Ended | - |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | - |
| Configuration | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | S/H-ADC | - |
| Ratio - S/H:ADC | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | - |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | - |
| Architecture | SAR | SAR | SAR | SAR | SAR | - |
| Reference Type | Internal | Internal | External, Internal | Internal | Internal | - |
| Voltage - Supply, Analog | 5V, -12V, -15V | 5V, -12V, -15V | ±5V, 11.4V ~ 15.75V | 5V, -12V, -15V | 5V, -12V, -15V | - |
| Voltage - Supply, Digital | 5V, -12V, -15V | 5V, -12V, -15V | 5V | 5V, -12V, -15V | 5V, -12V, -15V | - |
| Features | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | - |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | - |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-PDIP | 24-SOIC | 24-PDIP | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | - |
