Please send RFQ , we will respond immediately.

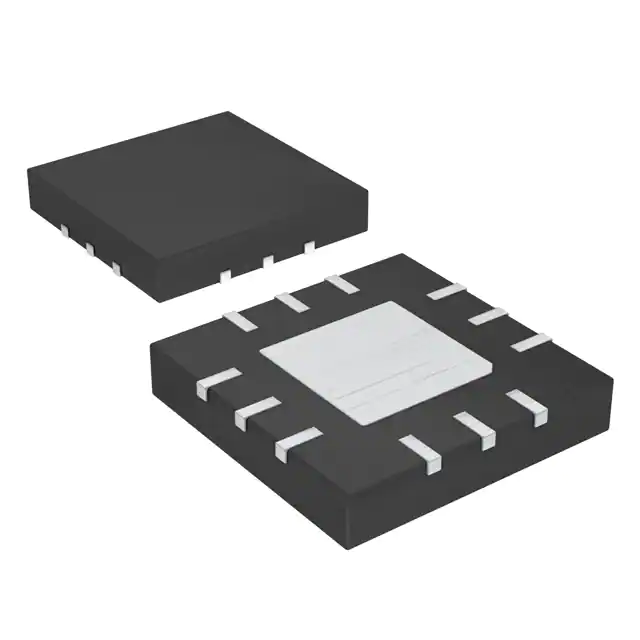

| Part Number | MAX17292ETCD+ | MAX17292ETCF+ | MAX17292ETCE+ | MAX17290ETCD+ | MAX17292ETCC+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete |
| Function | Step-Up | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 5V | 5V | 5V | 5V | 5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Current - Output | 1A | 1A | 1A | 1A | 1A |
| Frequency - Switching | 1MHz ~ 2.5MHz | 1MHz ~ 2.5MHz | 1MHz ~ 2.5MHz | 100kHz ~ 1MHz | 1MHz ~ 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | No | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (4x4) |
