Please send RFQ , we will respond immediately.

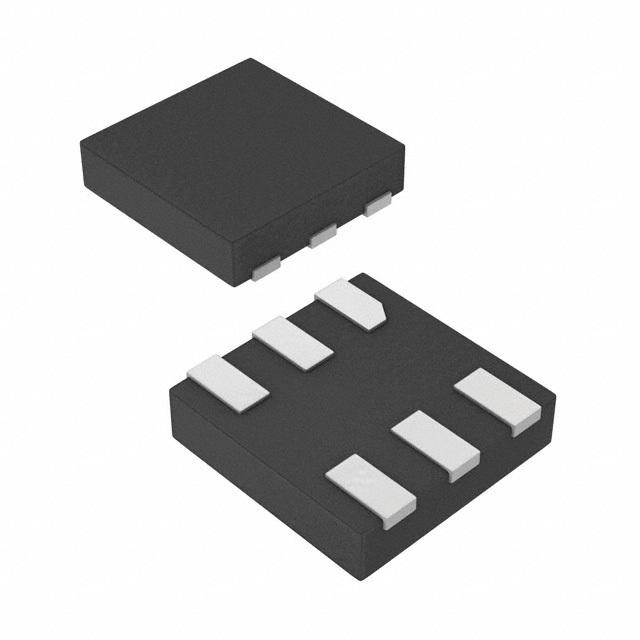

| Part Number | MAX17220ALT+T | MAX17220ELT+T | MAX17223ALT+T | MAX17222ALT+T | MAX17225ALT+T | MAX17224ALT+T |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Up | Step-Up | Step-Up | Step-Up | Step-Up | Step-Up |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Boost | Boost | Boost | Boost | Boost | Boost |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 0.4V | 0.4V | 0.4V | 0.4V | 0.4V | 0.4V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V | 1.8V |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V | 5V | 5V |
| Current - Output | 225mA (Switch) | 225mA (Switch) | 500mA (Switch) | 500mA (Switch) | 1A (Switch) | 1A (Switch) |
| Frequency - Switching | 2.5MHz | 2.5MHz | 2.5MHz | 2.5MHz | 2.5MHz | 2.5MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-WDFN | 6-WDFN | 6-WDFN | 6-WDFN | 6-WDFN | 6-WDFN |
| Supplier Device Package | 6-µDFN (2x2) | 6-µDFN (2x2) | 6-µDFN (2x2) | 6-µDFN (2x2) | 6-µDFN (2x2) | 6-µDFN (2x2) |
