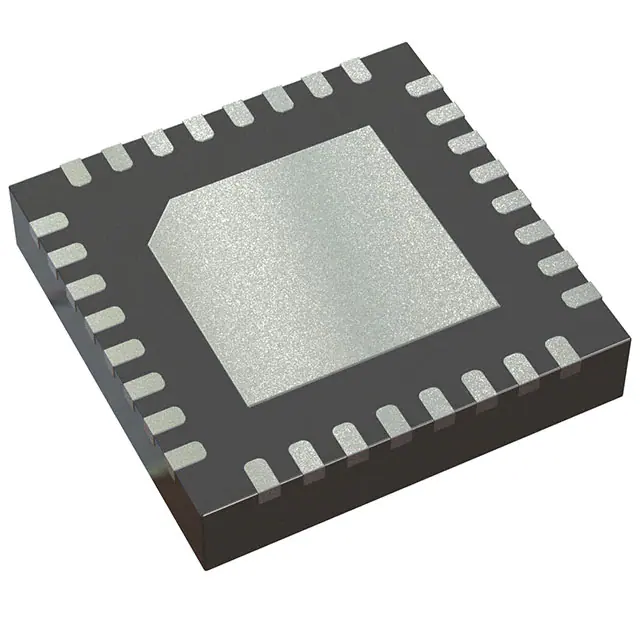

| Part Number | MAX16993ATJG/V+ | MAX16993ATJH/V+ | MAX16993ATJI/V+ | MAX16993ATJG/V+T | MAX16993ATJJ/V+ | MAX16993ATJA/V+ | MAX16993ATJC/V+ | MAX16993ATJE/V+ | MAX16993ATJF/V+ |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) | Adjustable (Programmable) |
| Number of Outputs | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Voltage - Input (Min) | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V | 3.5V |
| Voltage - Input (Max) | 36V | 36V | 36V | 36V | 36V | 36V | 36V | 36V | 36V |
| Voltage - Output (Min/Fixed) | 0.8V (3.3V, 5V) | 0.8V (3.3V, 5.2V) | 0.8V | 0.8V (3.3V, 5V) | 0.8V (3.3V, 5V) | 0.8V | 0.8V | 0.8V (3.3V, 5V) | 0.8V (3.3V, 5V) |
| Voltage - Output (Max) | 3.95V | 3.95V | 3.95V | 3.95V | 3.95V | 3.95V | 3.95V | 3.95V | 3.95V |
| Current - Output | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A | 3A |
| Frequency - Switching | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz | 2.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) |
