Please send RFQ , we will respond immediately.
| Part Number | MAX16992ATCC/V+T | MAX16992ATCD/V+T | MAX16992ATCE/V+T | MAX16992ATCF/V+T | MAX16990ATCC/V+T | MAX16992ATCC/V+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC | Boost, SEPIC |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Output Phases | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 36V | 4.5V ~ 36V | 4.5V ~ 36V | 4.5V ~ 36V | 4.5V ~ 36V | 4.5V ~ 36V |
| Frequency - Switching | 1MHz ~ 2.5MHz | 1MHz ~ 2.5MHz | 1MHz ~ 2.5MHz | 1MHz ~ 2.5MHz | 220kHz ~ 1MHz | 1MHz ~ 2.5MHz |
| Duty Cycle (Max) | 85% | 85% | 85% | 85% | 93% | 85% |
| Synchronous Rectifier | No | No | No | No | No | No |
| Clock Sync | Yes | Yes | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

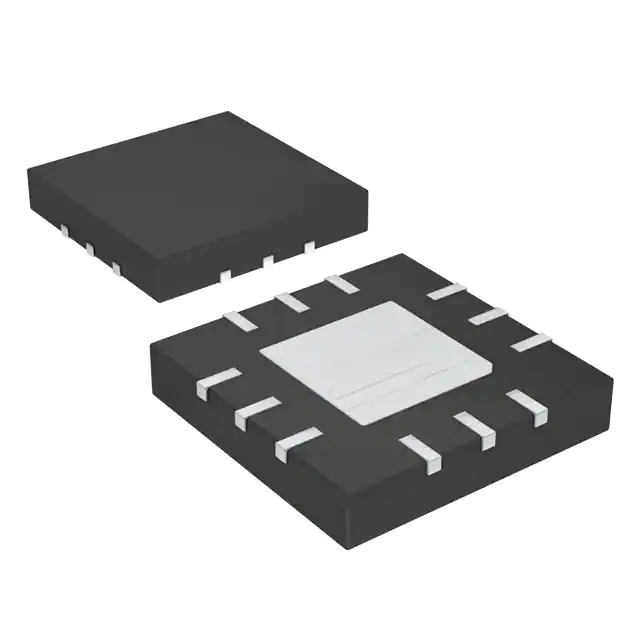

| Package / Case | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad |
| Supplier Device Package | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) | 12-TQFN (3x3) |
