| Part Number | MAX16963SATEF/V+ | MAX16963SATEF/V+T | MAX16963SATEA/V+ | MAX16963SATEC/V+ | MAX16963SATED/V+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| Number of Outputs | 2 | 2 | 2 | 2 | 2 |
| Voltage - Input (Min) | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V |
| Voltage - Output (Max) | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Current - Output | 1.5A | 1.5A | 1.5A | 1.5A | 1.5A |
| Frequency - Switching | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz | 2.2MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

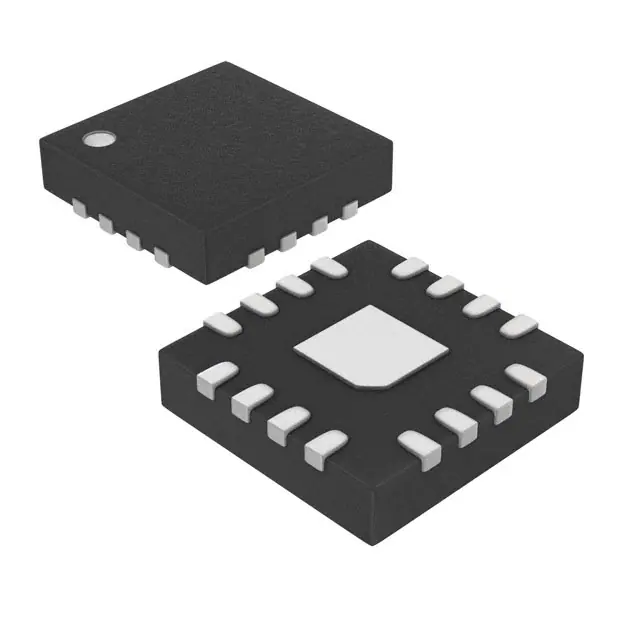

| Package / Case | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) | 16-TQFN (4x4) |
