| Part Number | MAX16824AUE+ | MAX16824AUE+T | MAX16824EUE+ | MAX16825AUE+ | MAX16823AUE+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Type | Linear | Linear | Linear | Linear | Linear |
| Topology | - | - | - | Shift Register | - |
| Internal Switch(s) | Yes | Yes | Yes | Yes | Yes |
| Number of Outputs | 3 | 3 | 3 | 3 | 3 |
| Voltage - Supply (Min) | 6.5V | 6.5V | 6.5V | 6.5V | 5.5V |
| Voltage - Supply (Max) | 28V | 28V | 28V | 28V | 40V |
| Voltage - Output | 36V | 36V | 36V | 36V | 39.3V |
| Current - Output / Channel | 150mA | 150mA | 150mA | 150mA | 100mA |
| Frequency | - | - | - | - | - |
| Dimming | PWM | PWM | PWM | PWM | PWM |
| Applications | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting | Automotive, Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

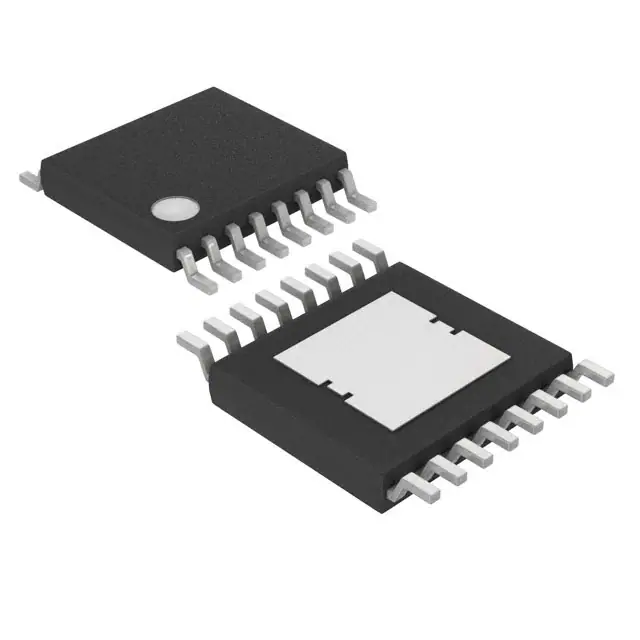

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP | 16-TSSOP-EP |
