| Part Number | MAX16814UUP+ | MAX16814AUP+ | MAX16814BUUP+ |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Type | DC DC Controller | DC DC Controller | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No | No | No |
| Number of Outputs | 4 | 4 | 4 |
| Voltage - Supply (Min) | 4.75V | 4.75V | 4.75V |
| Voltage - Supply (Max) | 40V | 40V | 40V |
| Voltage - Output | - | - | - |
| Current - Output / Channel | 150mA | 150mA | 150mA |
| Frequency | 200kHz ~ 2MHz | 200kHz ~ 2MHz | 200kHz ~ 2MHz |
| Dimming | PWM | PWM | PWM |
| Applications | Backlight, Lighting | Backlight, Lighting | Backlight, Lighting |
| Operating Temperature | 0°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

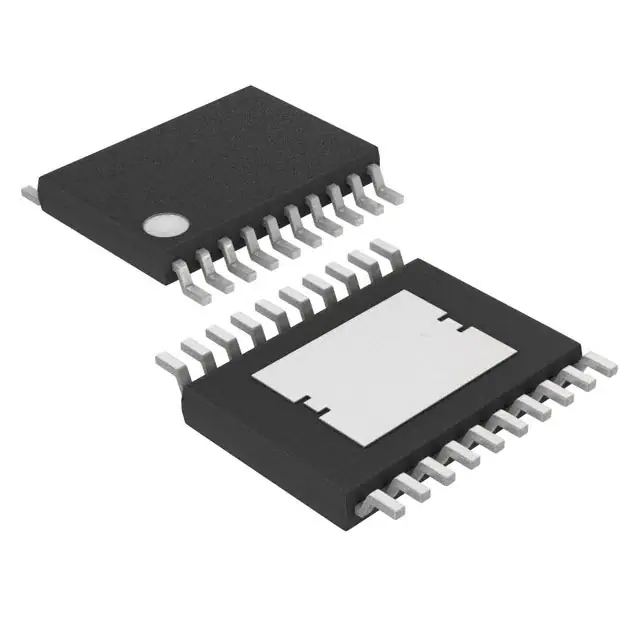

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP | 20-TSSOP-EP | 20-TSSOP-EP |
