| Part Number | MAX16814ATP+ | MAX16814AUP+ | MAX16814ATP+T | MAX16814CATP+ | MAX16804ATP+ | MAX16813ATP+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Type | DC DC Controller | DC DC Controller | DC DC Controller | - | Linear | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | SEPIC, Step-Down (Buck), Step-Up (Boost) | - | - | SEPIC, Step-Up (Boost) |
| Internal Switch(s) | No | No | No | - | Yes | No |
| Number of Outputs | 4 | 4 | 4 | - | 1 | 4 |
| Voltage - Supply (Min) | 4.75V | 4.75V | 4.75V | - | 5.5V | 4.75V |
| Voltage - Supply (Max) | 40V | 40V | 40V | - | 40V | 40V |
| Voltage - Output | - | - | - | - | 39.5V | - |
| Current - Output / Channel | 150mA | 150mA | 150mA | - | 350mA | 150mA |
| Frequency | 200kHz ~ 2MHz | 200kHz ~ 2MHz | 200kHz ~ 2MHz | - | - | 200kHz ~ 2MHz |
| Dimming | PWM | PWM | PWM | - | Analog, PWM | PWM |
| Applications | Backlight, Lighting | Backlight, Lighting | Backlight, Lighting | - | Automotive, Signage | Automotive, Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount |

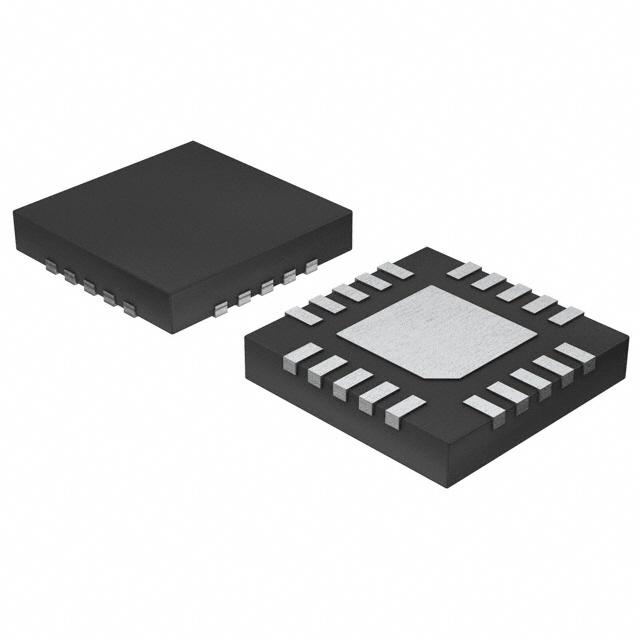

| Package / Case | 20-WFQFN Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-WFQFN Exposed Pad | - | 20-WQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4x4) | 20-TSSOP-EP | 20-TQFN (4x4) | - | 20-TQFN (5x5) | 20-TQFN (4x4) |
