| Part Number | MAX16804ATP+T | MAX16814ATP+T | MAX16805ATP+T | MAX16806ATP+T | MAX16804ATP+ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Linear | DC DC Controller | Linear | Linear | Linear |
| Topology | - | SEPIC, Step-Down (Buck), Step-Up (Boost) | - | - | - |
| Internal Switch(s) | Yes | No | Yes | Yes | Yes |
| Number of Outputs | 1 | 4 | 1 | 1 | 1 |
| Voltage - Supply (Min) | 5.5V | 4.75V | 5.5V | 5.5V | 5.5V |
| Voltage - Supply (Max) | 40V | 40V | 40V | 40V | 40V |
| Voltage - Output | 39.5V | - | 39V | 39V | 39.5V |
| Current - Output / Channel | 350mA | 150mA | 350mA | 350mA | 350mA |
| Frequency | - | 200kHz ~ 2MHz | - | - | - |
| Dimming | Analog, PWM | PWM | Analog, PWM | Analog, PWM | Analog, PWM |
| Applications | Automotive, Signage | Backlight, Lighting | Automotive | Automotive | Automotive, Signage |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

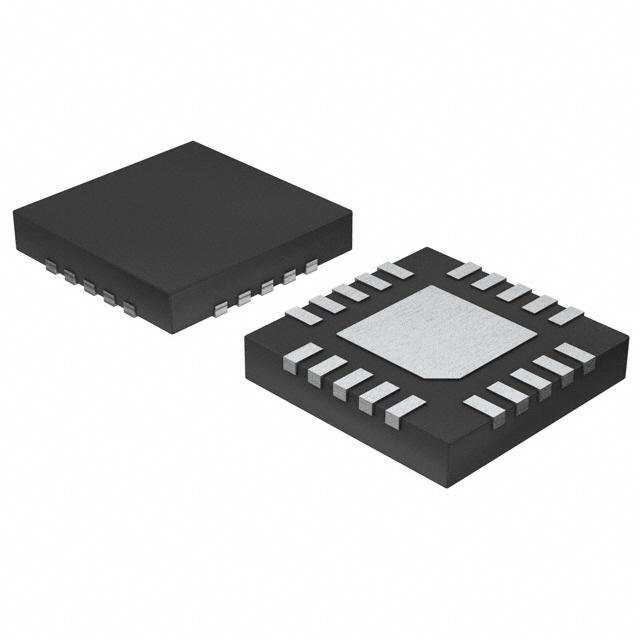

| Package / Case | 20-WQFN Exposed Pad | 20-WFQFN Exposed Pad | 20-WQFN Exposed Pad | 20-WQFN Exposed Pad | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (5x5) | 20-TQFN (4x4) | 20-TQFN (5x5) | 20-TQFN (5x5) | 20-TQFN (5x5) |
