Please send RFQ , we will respond immediately.

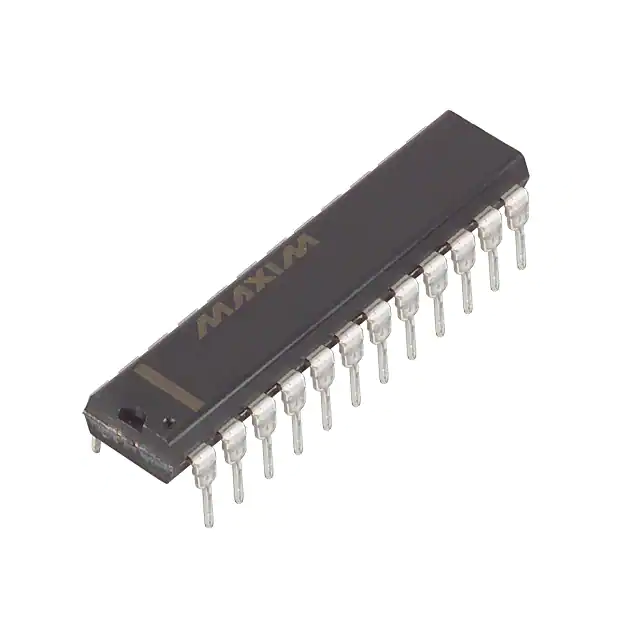

| Part Number | MAX154BCNG | MAX156BCNG | MAX154BCWG | MAX154BENG | MAX154BCNG+ | MAX154ACNG |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Number of Bits | 8 | 8 | 8 | 8 | 8 | 8 |
| Sampling Rate (Per Second) | 400k | 250k | 400k | 400k | 400k | 400k |
| Number of Inputs | 4 | 2, 4 | 4 | 4 | 4 | 4 |
| Input Type | Single Ended | Differential, Single Ended | Single Ended | Single Ended | Single Ended | Single Ended |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Configuration | MUX-S/H-ADC | S/H-MUX-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | 4:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of A/D Converters | 1 | 1 | 1 | 1 | 1 | 1 |
| Architecture | Flash | SAR | Flash | Flash | Flash | Flash |
| Reference Type | Internal | External, Internal | Internal | Internal | Internal | Internal |
| Voltage - Supply, Analog | 5V | ±5V, 5V | 5V | 5V | 5V | 5V |
| Voltage - Supply, Digital | 5V | ±5V, 5V | 5V | 5V | 5V | 5V |
| Features | Selectable Address | Selectable Address, Simultaneous Sampling | Selectable Address | Selectable Address | Selectable Address | Selectable Address |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 24-SOIC | 24-PDIP | 24-PDIP | 24-PDIP |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole |
