Please send RFQ , we will respond immediately.
| Part Number | MAX15158ZATJ+ | MAX15158ZATJ+T | MAX15158AATJ+ | MAX15158ATJ+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active | Active |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Up, Step-Up/Step-Down | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Boost, Buck-Boost | Boost, Buck-Boost | Boost, Buck-Boost | Boost, Buck-Boost |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Output Phases | 4 | 4 | 4 | 4 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14V | 8.5V ~ 14V | 8.5V ~ 14V | 8.5V ~ 14V |
| Frequency - Switching | 120kHz ~ 1MHz | 120kHz ~ 1MHz | 120kHz ~ 1MHz | 120kHz ~ 1MHz |
| Duty Cycle (Max) | - | - | - | - |
| Synchronous Rectifier | No | No | No | No |
| Clock Sync | Yes | Yes | Yes | Yes |
| Serial Interfaces | - | - | - | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start | Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start | Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

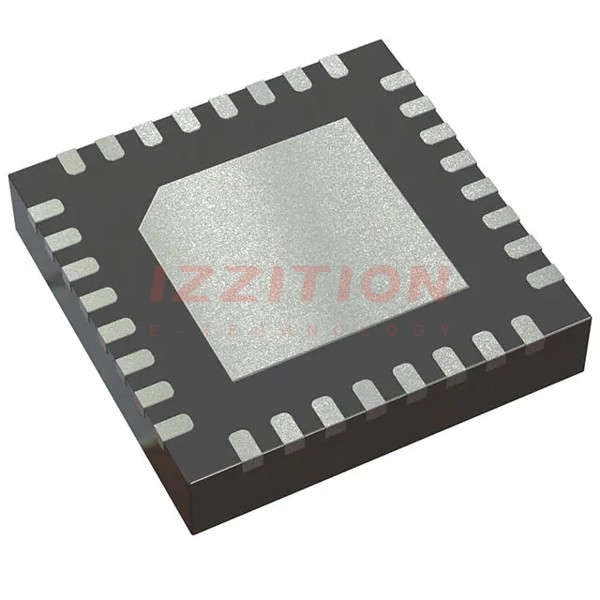

| Package / Case | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) | 32-TQFN (5x5) |
