| Part Number | MAX15103EWL+T | MAX15101EWL+T | MAX15102EWL+T |
|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Active | Active | Active |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Adjustable | Adjustable | Adjustable |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V |
| Voltage - Output (Max) | 5.2V | 5.2V | 5.2V |
| Voltage Dropout (Max) | 0.2V @ 3A | 0.1V @ 1A | 0.15V @ 2A |
| Current - Output | 3A | 1A | 2A |
| Current - Quiescent (Iq) | 3.5 mA | 3.5 mA | 3.5 mA |
| Current - Supply (Max) | - | - | - |
| PSRR | 40dB (100kHz) | 40dB (100kHz) | 40dB (100kHz) |
| Control Features | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

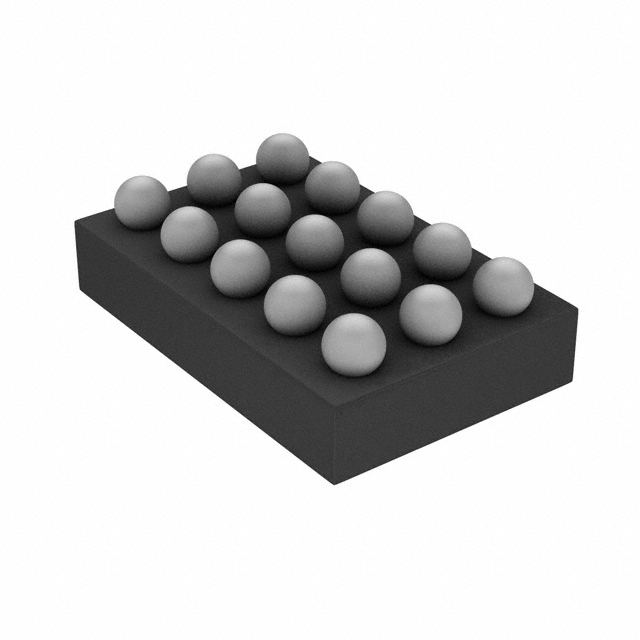

| Package / Case | 15-WFBGA, WLBGA | 15-WFBGA, WLBGA | 15-WFBGA, WLBGA |
| Supplier Device Package | 15-WLP (1.58x2.66) | 15-WLP (1.58x2.66) | 15-WLP (1.58x2.66) |
