| Part Number | MAX15025BATB+T | MAX15025CATB+T | MAX15025GATB+T | MAX15025HATB+T | MAX15025FATB+T | MAX15025DATB+T | MAX15025EATB+T | MAX15024BATB+T | MAX15025AATB+T | MAX15025BATB+ |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Independent | Independent | Independent | Independent | Independent | Independent | Independent | Single | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 2 | 2 |
| Gate Type | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 6.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V | 6.5V ~ 28V | 6.5V ~ 28V | 6.5V ~ 28V | 4.5V ~ 28V | 6.5V ~ 28V | 4.5V ~ 28V | 4.5V ~ 28V |
| Logic Voltage - VIL, VIH | 2V, 4.25V | 0.8V, 2V | - | - | - | 2V, 4.25V | - | 2V, 4.25V | 0.8V, 2V | 2V, 4.25V |
| Current - Peak Output (Source, Sink) | 2A, 4A | 2A, 4A | 2A, 4A | 2A, 4A | 2A, 4A | 2A, 4A | 2A, 4A | 4A, 8A | 2A, 4A | 2A, 4A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - | - | - | - | - | - |
| Rise / Fall Time (Typ) | 48ns, 32ns | 42ns, 30ns | 48ns, 32ns | 48ns, 32ns | 48ns, 32ns | 48ns, 32ns | 48ns, 32ns | 24ns, 16ns | 42ns, 30ns | 48ns, 32ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

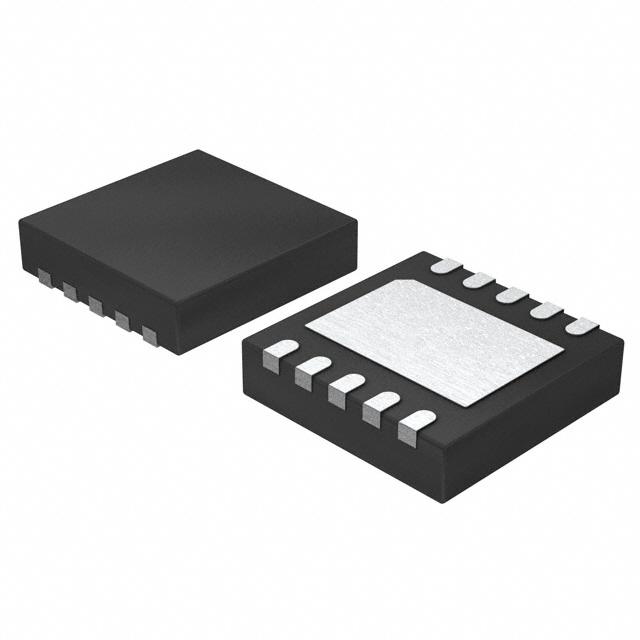

| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) | 10-TDFN (3x3) |
