Please send RFQ , we will respond immediately.
| Part Number | MAX15016AATX+ | MAX15017AATX+ | MAX15016BATX+ | MAX15016AATX+T | MAX15014AATX+ | MAX15015AATX+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Number of Outputs | 2 | 2 | 2 | 2 | 2 | 2 |
| Frequency - Switching | 135kHz | 500kHz | 135kHz | 135kHz | 135kHz | 500kHz |
| Voltage/Current - Output 1 | 1.26V ~ 32V, 1A | 1.26V ~ 32V, 1A | 1.26V ~ 32V, 1A | 1.26V ~ 32V, 1A | 1.26V ~ 32V, 1A | 1.26V ~ 32V, 1A |
| Voltage/Current - Output 2 | 5V ~ 40V, 50mA | 5V ~ 40V, 50mA | 5V ~ 40V, 50mA | 5V ~ 40V, 50mA | 5V ~ 40V, 50mA | 5V ~ 40V, 50mA |
| Voltage/Current - Output 3 | - | - | - | - | - | - |
| w/LED Driver | No | No | No | No | No | No |
| w/Supervisor | No | No | No | No | No | No |
| w/Sequencer | No | No | No | No | No | No |
| Voltage - Supply | 4.5V ~ 40V | 7.5V ~ 40V | 4.5V ~ 40V | 4.5V ~ 40V | 7.5V ~ 40V | 4.5V ~ 40V |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

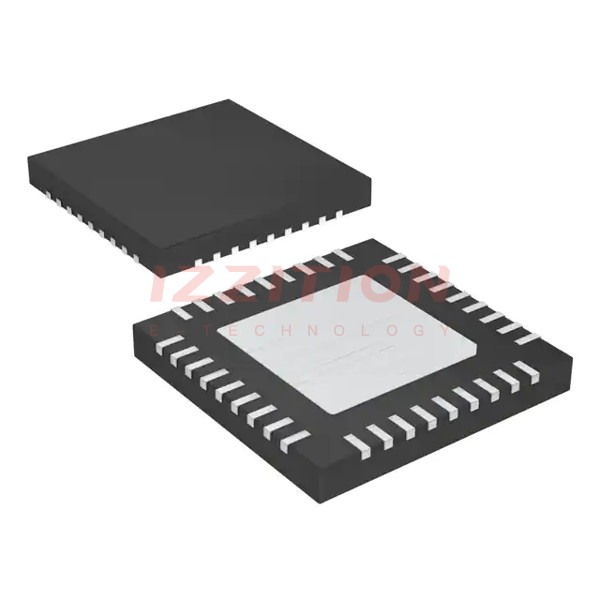

| Package / Case | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) | 36-TQFN (6x6) |
