Please send RFQ , we will respond immediately.
| Part Number | MAX15012DASA+T | MAX15013DASA+T | MAX15012AASA+T | MAX15012BASA+T | MAX15012CASA+T | MAX15012DASA+ |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active | Obsolete |
| Driven Configuration | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge | Half-Bridge |
| Channel Type | Independent | - | Independent | - | Independent | Independent |
| Number of Drivers | 2 | 2 | 2 | 2 | 2 | 2 |
| Gate Type | N-Channel MOSFET | - | N-Channel MOSFET | - | N-Channel MOSFET | N-Channel MOSFET |
| Voltage - Supply | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V | 8V ~ 12.6V |
| Logic Voltage - VIL, VIH | - | - | - | - | - | - |
| Current - Peak Output (Source, Sink) | 2A, 2A | - | 2A, 2A | - | 2A, 2A | 2A, 2A |
| Input Type | Inverting, Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting, Non-Inverting | Non-Inverting | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 175 V | 175 V | 175 V | 175 V | 175 V | 175 V |
| Rise / Fall Time (Typ) | 65ns, 65ns | - | 65ns, 65ns | - | 65ns, 65ns | 65ns, 65ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C (TJ) | - | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

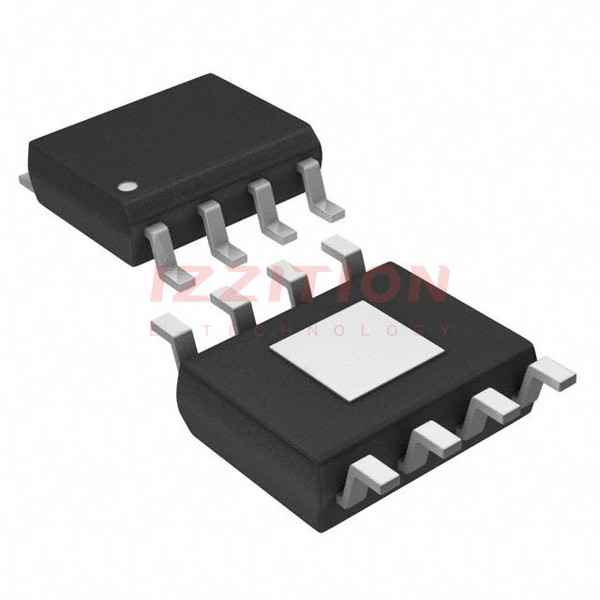

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP | 8-SOIC-EP | 8-SOIC | 8-SOIC | 8-SOIC-EP | 8-SOIC-EP |
