Please send RFQ , we will respond immediately.

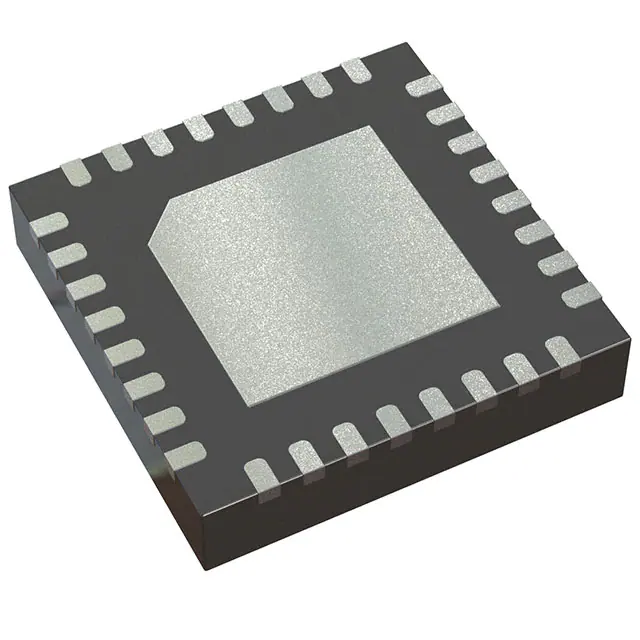

| Part Number | MAX15009ATJ+T | MAX15009ATN+T | MAX15008ATJ+T | MAX15009ATJ+ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Regulators | 1 | 1 | 2 | 1 |
| Voltage - Input (Max) | 40V | 40V | 40V | 40V |
| Voltage - Output (Min/Fixed) | 1.8V, (5V) | 1.8V, (5V) | 1.8V, (5V), Tracking | 1.8V, (5V) |
| Voltage - Output (Max) | 11V | 11V | 11V | 11V |
| Voltage Dropout (Max) | 1.5V @ 300mA | 1.5V @ 300mA | 1.5V @ 300mA, 0.5V @ 50mA | 1.5V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA, 50mA | 300mA |
| Current - Quiescent (Iq) | 85 µA | 85 µA | 85 µA | 85 µA |
| Current - Supply (Max) | 500 µA | 500 µA | 280 µA | 500 µA |
| PSRR | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) | 60dB (100Hz) |
| Control Features | Current Limit, Enable, Hold, Reset | Current Limit, Enable, Hold, Reset | Enable, Hold, Reset | Current Limit, Enable, Hold, Reset |
| Protection Features | Load Dump, Over Temperature, Over Voltage, Short Circuit | Load Dump, Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | Load Dump, Over Temperature, Over Voltage, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad | 56-WFQFN Exposed Pad | 32-WFQFN Exposed Pad | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-TQFN (5x5) | 56-TQFN (8x8) | 32-TQFN (5x5) | 32-TQFN (5x5) |
